Cradlepoint5G & LTE Routers

Cradlepoint R1900 5G Rugged Vehicle Router, TAA FIPS, with 5-Year NetCloud Mobile Performance Essentials + Advanced

5GMPN TAA-MBA5-19005GB-FA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$4,359.00$4,745.00Save $386

In stockShips from the US

Included subscription · 5 years
1 year−$1,971.623 years−$9815 years6 years−$1,478.32
Compliance · TAA compliant
Standard−$2,368.75TAA compliant
Region · North America
North AmericaGlobal−$1,360
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 20 configurations

Datasheets & documents

Overview

The Cradlepoint TAA-MBA5-19005GB-FA pairs the ruggedized R1900 5G in-vehicle router with 5 years of Ericsson NetCloud Mobile Performance Essentials and Advanced plans. This is the TAA-compliant FIPS variant for U.S. Federal Government ordering. It has an embedded 5G NR FR1 and Cat 20 LTE modem, dual-band Wi-Fi 6, four switchable GbE ports, discrete GNSS with dead reckoning and IP64 metal construction. It ships without SIM, AC power supply or antennas.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with dual 4FF SIM slots and 4x4 MIMO, up to 4.14 Gbps downlink
  • TAA-compliant FIPS SKU for U.S. Federal Government; FIPS 140-3 Level 1 module in process
  • 5-year NetCloud Mobile Performance Essentials + Advanced plans with NetCloud Manager, software updates and support for the full term
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 and 4 x GbE LAN/WAN switchable ports
  • Discrete active GNSS (GPS, Galileo, GLONASS, BeiDou) with dead reckoning
  • Ruggedized metal, IP64, -30 °C to 75 °C, 9–36 VDC with ignition sensing
  • Expandable with RX30-PoE (4 x 802.3bt PoE) or RX30-MC (second modem + 4 GbE)
  • Meets federal procurement requirements with a TAA-compliant, FIPS-variant part number

The Cradlepoint R1900 is a ruggedized 5G networking platform built for persistent in-vehicle connectivity. This part number, TAA-MBA5-19005GB-FA, is the TAA-compliant FIPS SKU for U.S. Federal Government buyers. It bundles the router with a 5-year Ericsson NetCloud Mobile Performance Essentials package plus the Advanced Plan. Essentials covers cloud management through NetCloud Manager, software updates and 24x7 support for the full term. The Advanced Plan adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps.

The embedded modem supports 5G NR FR1 in NSA and SA modes. When a vehicle leaves 5G coverage, it falls back to LTE Advanced Pro Category 20. It offers dual 4FF SIM slots, 4x4 MIMO and peak rates of up to 4.14 Gbps down and 660 Mbps up. Band support includes n41, n71, n77 and CBRS Band 48 for private cellular networks. The modem carries AT&T, T-Mobile and Verizon certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications.

For on-board connectivity, the router provides dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 and four GbE ports that switch between LAN and WAN. It also includes Bluetooth LE 5.2, a USB 2.0 port, an RS-232 serial port and an 8-pin GPIO connector. The optional RX30 accessories expand the platform in one of two ways: • RX30-PoE adds four 802.3bt PoE ports. • RX30-MC adds four GbE ports and a second modem for dual-carrier operation.

The GNSS receiver tracks GPS, Galileo, GLONASS and BeiDou concurrently with dead reckoning, which supports AVL integration. A quad-core ARMv8 CPU runs Docker containerized applications at the edge.

The router is built for harsh environments. It is rated IP64 and operates from -30 °C to 75 °C on a 9–36 VDC supply, with ignition sensing and ISO 7637-2 transient protection. Its certifications include: • Vehicle: E-Mark and SAE J1455 • Rail: EN 50155 Class S1 • Hazardous locations: Class I Div 2 • Shock and vibration: MIL-STD-810G

The FIPS 140-3 Level 1 module is in process. The Cradlepoint R1900 datasheet documents the complete specification.

Ideal for

  • Federal agency and military fleet vehicles that require TAA-compliant, FIPS-variant networking
  • Public safety and first responder vehicles on FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
  • Rail and light rail on-board connectivity under EN 50155 and EN 45545-2
  • Mobile command units using Wi-Fi 6, PoE cameras and AVL integration
  • Field service fleets running edge applications in Docker containers

Specifications

Power

Fuse
3 A fuse for 9–24 VDC; 2.5 A fuse above 24 VDC
Features
ISO 7637-2 reverse polarity and transient protection; ignition sensing (auto ON, time-delay OFF)
Connector
4-pin 2x2 Molex micro-fit
Light Rail
24 VDC nominal for light rail applications
Consumption
Sleep 15 mW; Idle 11 W; Typical 19 W; Heavy 22 W
Input Voltage
9–36 VDC steady state (in-line fuse required for vehicle installations)

General

MPN
TAA-MBA5-19005GB-FA
UPC
840292701014
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R1900
Region
United States Federal Government
FIPS Variant
FIPS SKU (FIPS 140-3 variant)
TAA Compliant
TAA Compliant
Product Status
Active

Package

Plan
5-Year NetCloud Mobile Performance Essentials + Advanced Plans
Shipping Weight
6.32 lb
Subscription Term
5 years
Essentials Support
24x7 support (phone 24-hour weekdays + weekend emergency, web 24x7, chat 24x5)
Ordering Guide Plan
TAA Compliant NC FIPS — Essentials + Advanced
Hardware Configuration
5G with Wi-Fi; 4FF SIM optional, not included; no AC power supply or antennas

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
GNSS GPS
Discrete active GPS with dead reckoning
TX Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only) — typical conducted
LTE Bands
FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
DL/UL up to 256 QAM (on particular carrier equipment)
Regulatory
FCC; IC; CE; RCM
Technology
5G FR1 NSA/SA and 4G LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps
Peak Downlink
Up to 4.14 Gbps
Carrier Aggregation
LTE: DL up to 7 CA, UL up to 2 CA; LTE + 5G NR ENDC: DL 1 CA, UL 1 CA
Gcf Global Operators
GCF members directory
Private Cellular Network
Yes, including FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
ESN (4G); FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified
Ptcrb North America Operators
PTCRB operators
Network Operator Certifications
AT&T; EE; Telstra; T-Mobile; Verizon

GNSS GPS

Power
3.1–3.8 V supply; 30 mA max
Accuracy
Autonomous 1 meter
Protocols
NMEA 0183; TAIP
Frequencies
L1 (1559–1606 MHz)
Sensitivity
Acquisition -147 dBm; Tracking -165 dBm; Reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent)
Time TO First Fix
30 seconds (cold start)

Physical

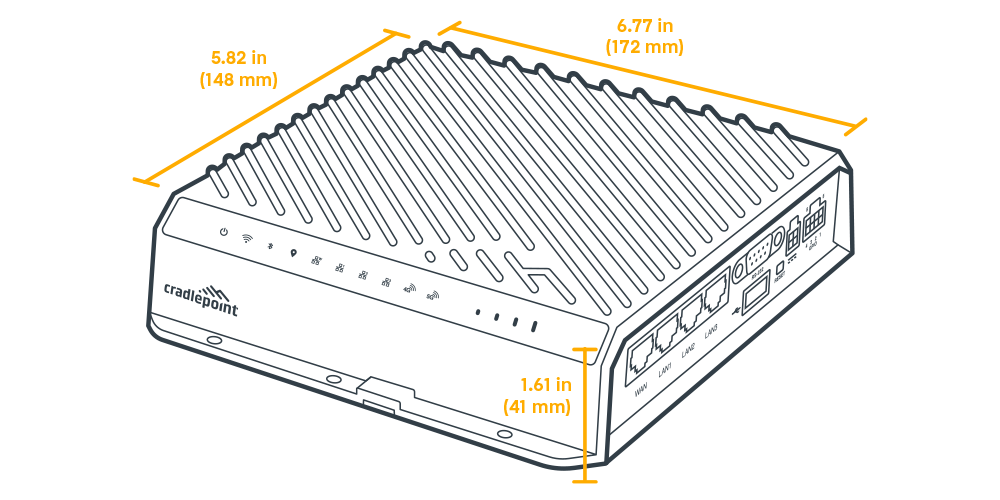

Size
172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)
Weight
0.98 kg (2.15 lb)

Interfaces

PoE
4 x 802.3bt Type 3 (up to 60 W per port), 60 W total budget
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v; Wi-Fi Alliance Certified
Modem

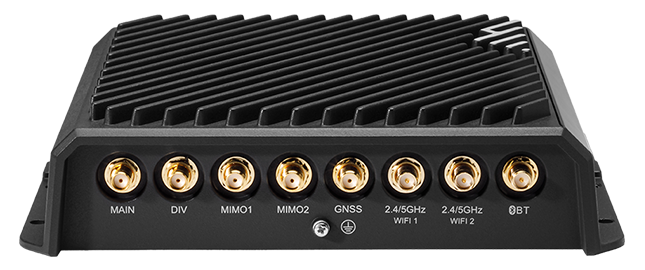

Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem; 4 x SMA cellular antenna connectors
Ethernet

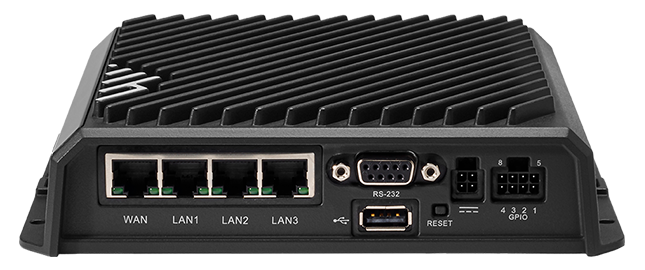

4 x GbE (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Bluetooth
Bluetooth LE 5.2; 10 dBm max TX; 1 x RP-SMA
Expansion Console
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x DB9 RS-232; 1 x 8-pin GPIO (2x4 Molex micro-fit, 3 mm locking); optional RX30-POE or RX30-MC

Wi-Fi Power

EU
2.4 GHz: 14.00 dBm; 5500–5700 MHz: 18.00 dBm (conducted)
Fcc
2.4 GHz: 23 dBm; 5260–5825 MHz: 21.90 dBm (conducted)
Japan
2.4 GHz: 16.92 dBm; 5500–5720 MHz: 21.00 dBm (conducted)
Canada
2.4 GHz: 23.00 dBm; 5500–5580 MHz: 22.00 dBm; 5660–5825 MHz: 21.89 dBm (conducted)
Global Safe Mode
2.4 GHz: 14 dBm (conducted)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips App Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
340,644 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail
EN 45545-2:2020 HL3; EN 50121-3-2; EN 50155 Class S1
Safety
UL/cUL; CB Scheme; EN 60950-1; EN 62368-1
Vehicle
E-Mark; SAE J1455
Security
FIPS 140-3 Level 1 Module in Process (FIPS models)
Shock Vibration
MIL-STD-810G, Section 2.2.2, Procedure 1 (Shock, Vibration)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
Ericsson NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 6 GB

Product Summary

PoE
Yes, with RX30-PoE
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Mobile
GPS GNSS
Discrete active GNSS with dead reckoning
5G Status
5G Embedded
Bluetooth
Yes, embedded Bluetooth 5.2
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
1
Ethernet Ports
4 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add 4 GbE PoE ports or 4 GbE and second modem
Dual Modem Support
Yes, with RX30-MC
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
5G/4G Dual Connectivity
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

What is included with TAA-MBA5-19005GB-FA?

The package includes the Cradlepoint R1900 5G router with Wi-Fi and 5-year NetCloud Mobile Performance Essentials and Advanced plans. The 4FF SIM is optional and not included, and the package has no AC power supply or antennas.

Is this the FIPS version of the R1900?

Yes. This is the TAA-compliant FIPS SKU intended for U.S. Federal Government ordering. The manufacturer lists the FIPS 140-3 Level 1 module as in process for R1900 FIPS models.

What does the Advanced Plan add?

The Advanced Plan adds threat management, web filtering, application visibility, analytics and advanced GNSS/GPS functions such as location tracking and cellular coverage maps. These sit on top of the Essentials package's management, updates and support.

How is the R1900 powered in a vehicle?

The R1900 accepts 9–36 VDC through a 4-pin Molex micro-fit connector and requires an in-line fuse: 3 A for 9–24 VDC installations and 2.5 A above 24 VDC. Ignition sensing handles automatic power-on and time-delayed shutdown.

Can I add a second cellular modem?

Yes. The optional RX30-MC managed accessory adds a modular modem slot and four GbE ports for simultaneous dual-carrier connectivity. The optional RX30-PoE adds four 802.3bt PoE ports instead.
