Overview

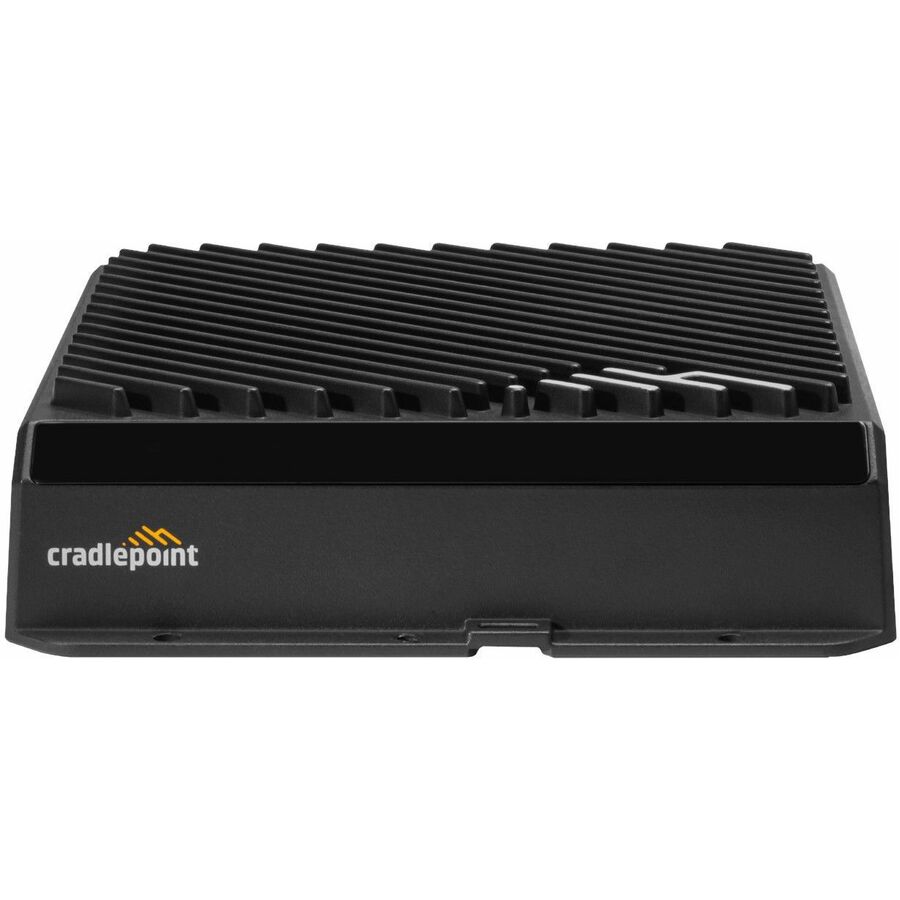

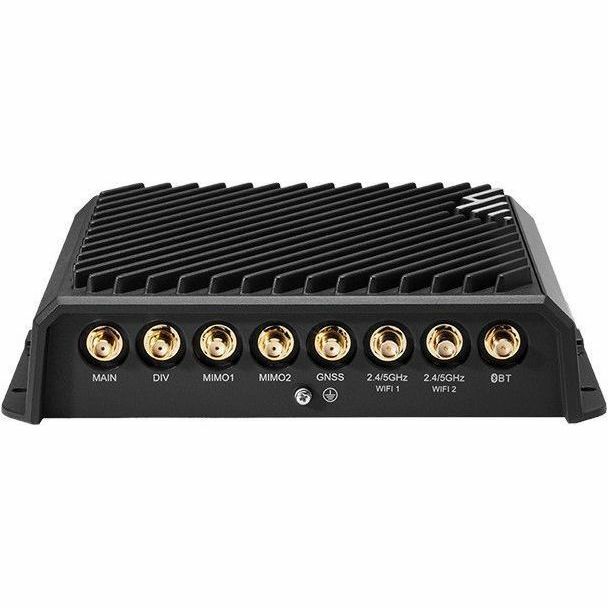

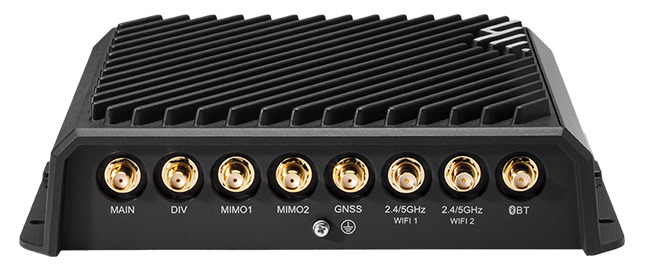

The Cradlepoint R1900 (TAA-MBA1-19005GB-FA) is a ruggedized in-vehicle 5G router. This SKU is the TAA-compliant FIPS variant, offered as a U.S. Federal Government ordering option, and includes 1 year of NetCloud Mobile Performance Essentials + Advanced. The router has an embedded 5G NR FR1 modem with Cat 20 LTE fallback, dual SIM slots, dual-band Wi-Fi 6, four switchable GbE ports, and discrete GNSS with dead reckoning. It runs on 9–36 VDC vehicle power and carries an IP64 rating. It ships without an AC power supply, antennas or SIM.

  • Embedded 5G NR FR1 (NSA/SA) modem with LTE Advanced Pro Cat 20, 4x4 MIMO and dual 4FF SIM slots
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (574 Mbps at 2.4 GHz, 1,200 Mbps at 5 GHz)
  • 4 x GbE LAN/WAN-switchable ports, plus USB 2.0, RS-232, GPIO and Bluetooth LE 5.2
  • Discrete active GNSS with dead reckoning (GPS, Galileo, GLONASS, BeiDou)
  • Ruggedized metal chassis: IP64, -30 °C to 75 °C operation, 9–36 VDC input with ignition sensing
  • TAA-compliant FIPS SKU (FIPS 140-3 Level 1 module in process) for U.S. Federal Government ordering
  • 1-year NetCloud Mobile Performance Essentials + Advanced plan included
  • Keeps vehicles connected by falling back to Cat 20 LTE automatically when 5G coverage drops

The Ericsson Cradlepoint R1900 is a ruggedized 5G networking platform for in-vehicle deployments. Typical users include public safety fleets, transit and rail operators, utilities and field forces that need persistent connectivity on the move. This part number (TAA-MBA1-19005GB-FA) is the TAA-compliant FIPS SKU for U.S. Federal Government ordering. It bundles 1 year of NetCloud Mobile Performance Essentials + Advanced.

The embedded modem supports 5G NR FR1 in both NSA and SA modes. It has 4x4 MIMO, peak rates up to 4.14 Gbps down and 660 Mbps up, and it falls back to LTE Advanced Pro Category 20 when the vehicle leaves 5G coverage. Two 4FF SIM slots support carrier selection. For simultaneous dual-carrier connectivity, the optional RX30-MC adds a second modular modem and four more GbE ports. The optional RX30-POE instead adds four 802.3bt PoE ports.

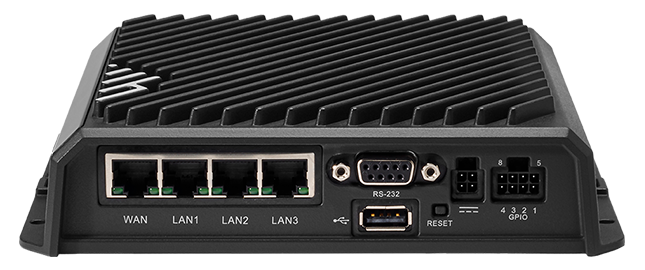

On the local side, the R1900 provides: • Dual-concurrent 2x2 MU-MIMO Wi-Fi 6 • Four LAN/WAN-switchable GbE ports • Bluetooth LE 5.2 • USB 2.0, RS-232 serial and GPIO

For automatic vehicle location systems, it adds discrete GNSS with dead reckoning across GPS, Galileo, GLONASS and BeiDou. A quad-core ARMv8 CPU runs Docker containerized applications at the edge.

The chassis is built for harsh environments. It has an IP64 rating, a -30 °C to 75 °C operating range and ignition sensing. Certifications include E-Mark, SAE J1455, MIL-STD-810G shock and vibration, EN 50155, NFPA 130 and Class I Div 2. On this model, the FIPS 140-3 Level 1 module is in process.

The Essentials package includes NetCloud Manager for management and software updates, plus 24x7 support. The Advanced plan adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps. The hardware carries a limited lifetime warranty while it is covered by an active NetCloud subscription.

Ideal for

  • Public safety and first responder vehicles that need persistent 5G/LTE connectivity
  • Federal agency fleets requiring TAA-compliant, FIPS-variant networking hardware
  • Transit buses and light rail with passenger Wi-Fi, onboard systems and AVL integration
  • Utility and field-service trucks running cameras, PoE devices and containerized edge apps
  • Mobile command units using CBRS private cellular or dual-carrier failover

Specifications

Power

Fuse
3 A fuse (9–24 VDC); 2.5 A fuse (> 24 VDC)
DC Input
9–36 VDC steady state (in-line fuse required for vehicle installations)
Features
ISO 7637-2 reverse polarity/transient protection; ignition sensing (auto ON, time-delay OFF)
Connector
4-pin 2x2 Molex micro-fit
Light Rail
24 VDC nominal for light rail applications
Consumption
Sleep 15 mW; Idle 11 W; Typical 19 W; Heavy 22 W

General

MPN
TAA-MBA1-19005GB-FA
UPC
840292701144
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R1900
Region
United States Federal Government
FIPS Sku
FIPS SKU (FIPS 140-3 variant)
Package Plan
1-Year NetCloud Mobile Performance Essentials + Advanced Plans
TAA Compliant
TAA-compliant SKU
Product Status
Active
Shipping Weight
3.00 lb
Subscription Term
1 year
Ordering Guide Plan
TAA Compliant NC FIPS — Essentials + Advanced
Hardware Configuration
5G with Wi-Fi; SIM, AC power supply and antennas not included

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
GNSS GPS
Discrete active GPS with dead reckoning
TX Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; HPUE 25 dBm ± 1 (B41 SA only) — typical conducted
LTE Bands
FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
DL/UL up to 256 QAM (on particular carrier equipment)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20; dual 4FF SIM; 3GPP Release 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Carrier Aggregation
LTE: DL up to 7 CA, UL up to 2 CA; LTE + 5G NR ENDC: DL 1 CA, UL 1 CA
Gcf Global Operators
GCF members directory
Private Cellular Network
Yes, incl. FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Ptcrb North America Operators
PTCRB operators
Network Operator Certifications
AT&T, EE, Telstra, T-Mobile, Verizon

GNSS GPS

Power
3.1–3.8 V supply; 30 mA max
Accuracy
Autonomous 1 meter
Protocols
NMEA 0183; TAIP
Frequencies
L1 (1559–1606 MHz)
Sensitivity
Acquisition -147 dBm; Tracking -165 dBm; Reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent)
Time TO First Fix
30 seconds (cold start)

Physical

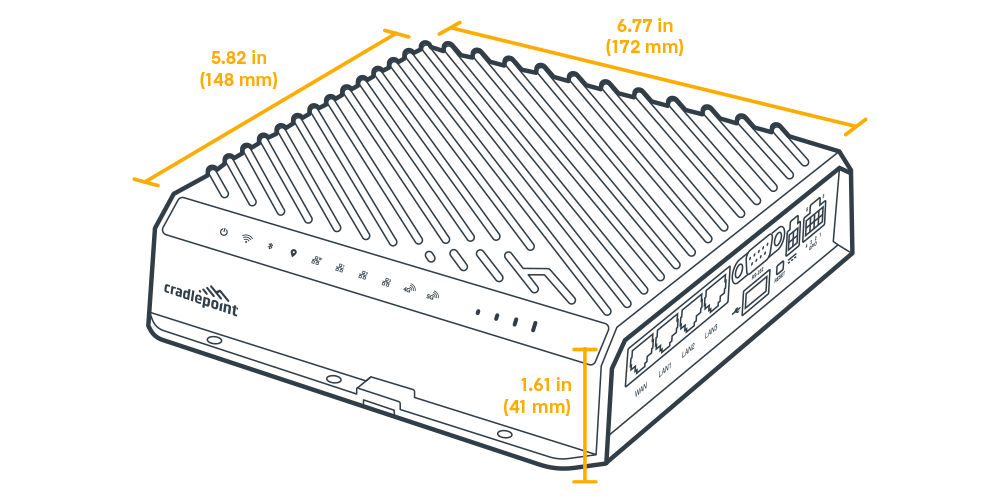

Size
172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)
Weight
0.98 kg (2.15 lb)

Interfaces

PoE
4 x 802.3bt Type 3 (up to 60 W per port); 60 W total budget
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v; Wi-Fi Alliance Certified
Modem
Embedded 5GB NR FR1 low-/mid-band + 4G LTE Cat 20 modem; 4 x SMA cellular antenna connectors
Ethernet
4 x GbE (LAN/WAN switchable)
Bluetooth
Bluetooth LE 5.2; 10 dBm max TX; 1 x RP-SMA connector
GNSS Connector
1 x SMA GNSS antenna connector
Expansion Console
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x DB9 RS-232; 1 x 8-pin GPIO (2x4 Molex micro-fit); optional RX30-POE or RX30-MC

Wi-Fi Power

EU
2.4 GHz 14.00 dBm; 5500–5700 MHz 18.00 dBm (conducted)
Fcc
2.4 GHz 23 dBm; 5260–5825 MHz 21.90 dBm (conducted)
Japan
2.4 GHz 16.92 dBm; 5500–5720 MHz 21.00 dBm (conducted)
Canada
2.4 GHz 23.00 dBm; 5500–5580 MHz 22.00 dBm; 5660–5825 MHz 21.89 dBm (conducted)
Global Safe Mode
2.4 GHz 14 dBm (conducted)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Sessions Tcp
32,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
340,644 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
Operating 5–95%; Storage 5–95%
Ingress Protection
IP64 (dust tight and splashing water)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail
EN 45545-2:2020 HL3; EN 50121-3-2; EN 50155 Class S1
Safety
UL/cUL; CB Scheme; EN 60950-1; EN 62368-1
Vehicle
E-Mark; SAE J1455
Security
FIPS 140-3 Level 1 module in process (FIPS models)
Shock Vibration
MIL-STD-810G, Section 2.2.2, Procedure 1 (Shock, Vibration)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with an active NetCloud subscription
Service Plans
Ericsson NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 6 GB (for NetCloud Container Orchestrator)

Product Summary

PoE
Yes, with RX30-PoE
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
Category
Mobile
GPS GNSS
Discrete active GNSS with dead reckoning
5G Status
5G Embedded
Bluetooth
Yes, embedded Bluetooth 5.2
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
1
Ethernet Ports
4 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add 4 GbE PoE ports or 4 GbE and second modem
Dual Modem Support
Yes, with RX30-MC
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
5G/4G Dual Connectivity
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

What is included with TAA-MBA1-19005GB-FA?

The Cradlepoint R1900 5G router hardware (FIPS, TAA-compliant configuration) plus a 1-year NetCloud Mobile Performance Essentials + Advanced plan. A SIM card, AC power supply and antennas are not included.

Is this R1900 FIPS validated?

This is the FIPS SKU of the R1900. Cradlepoint lists its FIPS 140-3 Level 1 module as in process for R1900 FIPS models.

How does the R1900 get power in a vehicle?

It accepts 9–36 VDC through a 4-pin Molex micro-fit connector, with an in-line fuse required for vehicle installations. It includes ISO 7637-2 reverse polarity and transient protection, and ignition sensing for automatic on and time-delayed off.

Can the R1900 use two carriers at once?

Yes. It has two 4FF SIM slots for its embedded modem. Adding the optional RX30-MC managed accessory provides a second modular modem for simultaneous dual-carrier connectivity, plus four more GbE ports.

What does the Advanced plan add?

The Advanced Mobile Performance plan adds threat management, web filtering, application visibility, analytics, and advanced GNSS functionality, including location tracking and cellular coverage maps.
