Cradlepoint R1900 5G Rugged In-Vehicle Router with Wi-Fi 6 and 1-Year NetCloud Mobile Performance Essentials

5GMPN MB01-19005GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$1,990.25$2,175.00Save $184.75

In stockShips from the US

Included subscription · 1 year
1 year3 years+$461.185 years+$918.716 years+$1,008.75
Compliance · Standard
StandardTAA compliant+$8.75
Region · Global
North America+$397.13Global
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 20 configurations

Datasheets & documents

Overview

The Cradlepoint R1900 (MB01-19005GB-GA) is a ruggedized 5G router for vehicles, rail and field operations. It combines an embedded 5G NR FR1 and Cat 20 LTE modem (up to 4.14 Gbps downlink), dual-band Wi-Fi 6, four GbE ports, Bluetooth 5.2 and dead-reckoning GNSS in an IP64 metal chassis. This All Regions package includes a 1-year NetCloud Mobile Performance Essentials plan. It ships without an AC power supply or antennas.

  • Embedded 5G NR FR1 (NSA/SA) and Cat 20 LTE modem: up to 4.14 Gbps down, 660 Mbps up, 4x4 MIMO, dual 4FF SIM slots
  • Dual-radio, dual-band 2x2 MU-MIMO Wi-Fi 6 with DFS and WPA3
  • 4 x GbE LAN/WAN ports, Bluetooth LE 5.2, USB 2.0, RS-232 and 8-pin GPIO
  • Optional RX30 accessories for four 802.3bt PoE ports or a second modem with four GbE ports
  • Quad-core ARMv8 edge compute running Docker containers
  • IP64, MIL-STD-810G, EN 50155, NFPA 130 and Class I Div 2 certified
  • 1-year NetCloud Mobile Performance Essentials plan with 24x7 support
  • Stay on the fastest available network, with automatic fallback to Cat 20 LTE outside 5G coverage

The Ericsson Cradlepoint R1900 is a 5G in-vehicle router for public safety, transit, rail and utility fleets that need enterprise networking on the move. Its embedded modem supports 5G NR FR1 in both NSA and SA modes, and it switches automatically to Cat 20 LTE when a vehicle leaves 5G coverage. The modem offers 4x4 MIMO, dual 4FF SIM slots and peak rates up to 4.14 Gbps down and 660 Mbps up. It carries AT&T, EE, Telstra, T-Mobile and Verizon certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified and ESN (4G) public safety certifications.

Inside the vehicle, dual-band 2x2 Wi-Fi 6 serves up to about 100 typical clients. Four GbE LAN/WAN ports connect cameras and onboard systems, and embedded Bluetooth LE 5.2, USB, RS-232 and GPIO handle integrations. The optional RX30 managed accessories add either four 802.3bt PoE ports or four GbE ports with a second modular modem for dual-carrier connectivity. A quad-core ARMv8 CPU runs Docker containers at the edge. Discrete active GNSS with dead reckoning supports Automatic Vehicle Location.

The R1900 is built for harsh installs. It has an IP64 rating, a -30 °C to 75 °C operating range and 9–36 VDC input with ignition sensing. Certifications include MIL-STD-810G, E-Mark, SAE J1455, EN 50155, EN 45545-2, NFPA 130 and Class I Div 2. The included 1-year Essentials plan provides NetCloud Manager, software updates, 24x7 support and the limited lifetime warranty while the subscription is active. The NetCloud Advanced plan can be added at any time for threat management, web filtering, analytics and coverage maps. Antennas and an AC power supply are sold separately.

Ideal for

  • Police, fire and EMS vehicles on FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
  • Light rail, buses and rail cars that need EN 50155 and NFPA 130 compliant connectivity
  • Utility and oil-and-gas vehicles operating in Class I Div 2 environments
  • Fleets running PoE cameras or dual-carrier failover through RX30 accessories
  • Edge applications and AVL analytics running in containers on the vehicle

Specifications

Power

Input
9–36 VDC via 4-pin Molex micro-fit (3 A fuse 9–24 VDC, 2.5 A above 24 VDC); 24 VDC nominal for light rail
Features
ISO 7637-2 protection; ignition sensing
Consumption
Sleep 15 mW; idle 11 W; typical 19 W; heavy 22 W

General

MPN
MB01-19005GB-GA
UPC
810007807287
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R1900
Region
All Regions
Package Plan
1-Year NetCloud Mobile Performance Essentials Plan
Subscription Term
1 year
Hardware Configuration
5G with Wi-Fi; no AC power supply or antennas

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Discrete active GPS with dead reckoning
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
Modulation
Up to 256 QAM DL/UL (carrier-dependent)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
5G FR1 NSA/SA + Cat 20 LTE Advanced Pro; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Transmit Power
5G NR 23 dBm ± 1.5; EN-DC 20 dBm ± 1; LTE 23 dBm ± 1; HPUE 25 dBm ± 1 (B41 SA)
Carrier Aggregation
LTE: up to 7 CA DL / 2 CA UL; EN-DC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (worldwide)
Public Safety Certifications
ESN (4G), FirstNet Trusted™, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, EE, Telstra, T-Mobile, Verizon

GNSS GPS

Power
3.1–3.8 V supply, 30 mA max
Accuracy
Autonomous 1 m
Protocols
NMEA 0183, TAIP
Frequencies
L1 (1559–1606 MHz)
Sensitivity
Acquisition -147 dBm; tracking -165 dBm; reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent)
Time TO First Fix
30 seconds (cold start)

Physical

Weight
0.98 kg (2.15 lb)

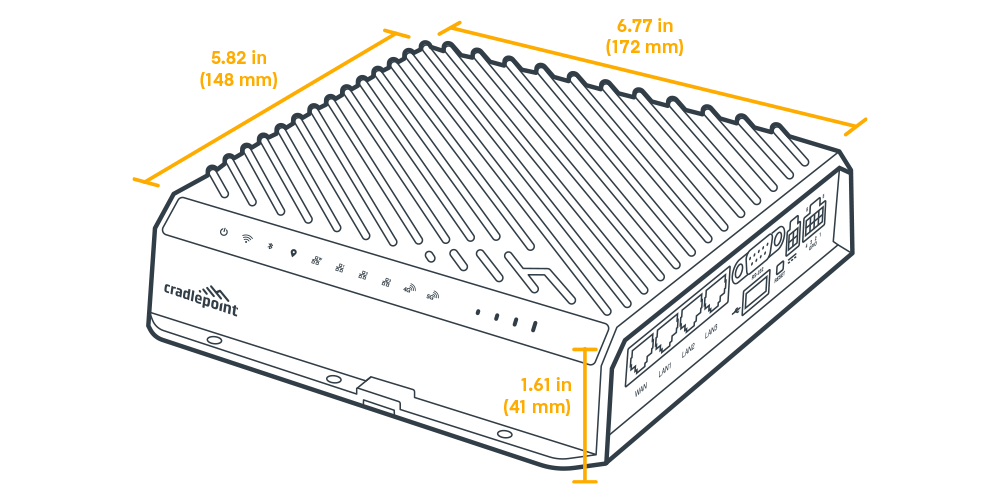

Dimensions
172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)

Interfaces

PoE
4 x 802.3bt Type 3 (up to 60 W/port), 60 W total budget
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz), 1,200 Mbps (5 GHz)
Modem
Embedded 5G NR FR1 low/mid-band + Cat 20 LTE modem; 4 x SMA cellular connectors
Ethernet
4 x GbE (LAN/WAN switchable)
Bluetooth
Bluetooth LE 5.2, 10 dBm max TX, 1 x RP-SMA connector
Wi-Fi Features
Global Optimized Wi-Fi & International SDR; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v; Wi-Fi Alliance Certified
GNSS Connector
1 x SMA GNSS antenna connector
Expansion Console
USB 2.0 Type A; DB9 RS-232; 8-pin GPIO (2x4 Molex micro-fit); optional RX30-POE or RX30-MC accessories
Wi-Fi Antenna Connectors
2 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

EU
2.4 GHz 14.00 dBm; 5500–5700 MHz 18.00 dBm
Fcc
2.4 GHz 23 dBm; 5260–5825 MHz 21.90 dBm
Japan
2.4 GHz 16.92 dBm; 5500–5720 MHz 21.00 dBm
Canada
2.4 GHz 23.00 dBm; 5500–5580 MHz 22.00 dBm; 5660–5825 MHz 21.89 dBm
Global Safe Mode
2.4 GHz 14 dBm

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Ipsec VPN
400 Mbps point-to-point IPsec VPN
Sase SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Stateful Firewall
940 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
32,000
Ips App Aware Client Analytics
940 Mbps

Reliability

MTBF
340,644 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
5%–95% operating and storage
Ingress Protection
IP64 (dust tight and splashing water)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail
EN 45545-2:2020 HL3; EN 50121-3-2; EN 50155 Class S1
Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Vehicle
E-Mark, SAE J1455
Security
FIPS 140-3 Level 1 in process (R1900 FIPS models only)
Fire Safety
NFPA 130 (North American fire safety)
Shock Vibration
MIL-STD-810G, Sec. 2.2.2, Procedure 1
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
24x7 support for the full subscription term
Warranty
Limited lifetime warranty with an active NetCloud plan
Service Plans
NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 6 GB

Product Summary

PoE
Yes, with RX30-PoE
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Mobile
GPS GNSS
Discrete active GNSS with dead reckoning
5G Status
5G embedded
Bluetooth
Embedded Bluetooth 5.2
USB Ports
1
Throughput
940 Mbps (firewall)
Form Factor
Ruggedized metal
VPN Tunnels
20
Serial Ports
1
Ethernet Ports
4 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add 4 GbE PoE ports or 4 GbE and a second modem
Dual Modem Support
Yes, with RX30-MC
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
5G/4G dual connectivity
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Are antennas and a power supply included?

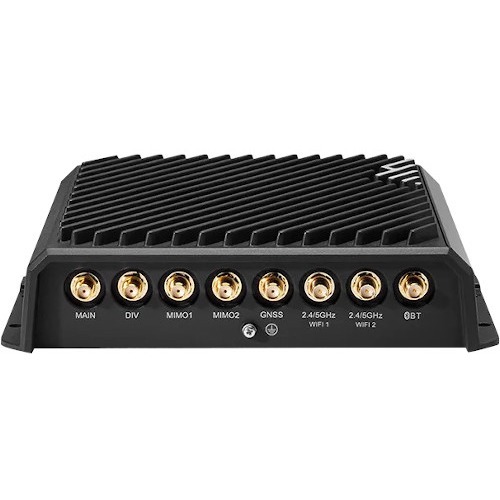

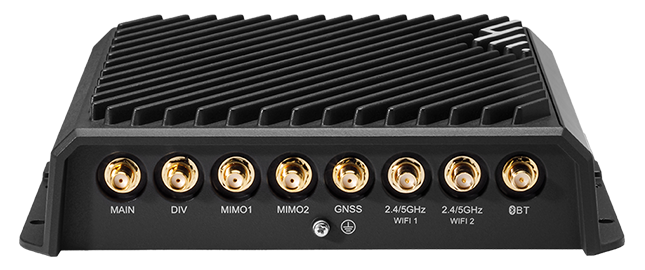

No. This configuration ships without an AC power supply or antennas. The router has four SMA cellular connectors, two RP-SMA Wi-Fi connectors, one RP-SMA Bluetooth connector and one SMA GNSS connector for the antennas you choose.

Does the R1900 have built-in PoE?

PoE comes from the optional RX30-PoE managed accessory. It adds four 802.3bt Type 3 ports with up to 60 W per port and a 60 W total budget.

What does the 1-year Essentials plan cover?

It includes NetCloud Manager, software updates, 24x7 support and the limited lifetime warranty for as long as the subscription is active. The NetCloud Advanced plan can be added at any time for threat management, web filtering, analytics and coverage maps.

Can it connect to two carriers at once?

Yes, with the optional RX30-MC accessory. It adds a modular modem slot and four GbE ports for simultaneous dual-carrier connectivity. The embedded modem also has dual 4FF SIM slots.
