Cradlepoint5G & LTE Routers

Cradlepoint R1900 5G Rugged In-Vehicle Router, TAA, with 5-Year NetCloud Essentials + Advanced Plans

5GMPN TAA-MBA5-19005GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$3,999.00$4,175.00Save $176

In stockShips from the US

Included subscription · 5 years
1 year−$1,0003 years−$5005 years6 years−$118.32
Compliance · TAA compliant
Standard−$90.04TAA compliant
Region · Global
North America+$1,360Global
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 20 configurations

Datasheets & documents

Overview

The Cradlepoint R1900 (TAA-MBA5-19005GB-GA) is a ruggedized 5G in-vehicle router bundled with 5 years of Ericsson NetCloud Mobile Performance Essentials and Advanced plans. This TAA-compliant configuration is the U.S. Federal Government ordering option. It pairs an embedded 5G NR FR1 and Cat 20 LTE modem with dual 4FF SIM slots, four switchable Gigabit Ethernet ports, dual-band Wi-Fi 6, Bluetooth 5.2 and discrete GNSS with dead reckoning in an IP64 metal enclosure. The hardware ships without an AC power supply or antennas.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with dual 4FF SIM slots and 4x4 MIMO
  • 4 x GbE LAN/WAN switchable ports plus dual-band, dual-concurrent 802.11ax Wi-Fi 6
  • Discrete active GNSS with dead reckoning (GPS, Galileo, GLONASS, BeiDou) for AVL integration
  • Ruggedized metal IP64 enclosure, -30 °C to 75 °C operation, 9–36 VDC input with ignition sensing
  • Optional RX30 accessories add 4 x 802.3bt PoE ports or 4 x GbE plus a second modem
  • Edge computing with quad-core ARMv8 CPU and Docker container support
  • 5-year NetCloud Mobile Performance Essentials + Advanced plans; TAA-compliant U.S. Federal SKU
  • Stay connected on the move: 5G with automatic Cat 20 LTE fallback when vehicles leave 5G coverage

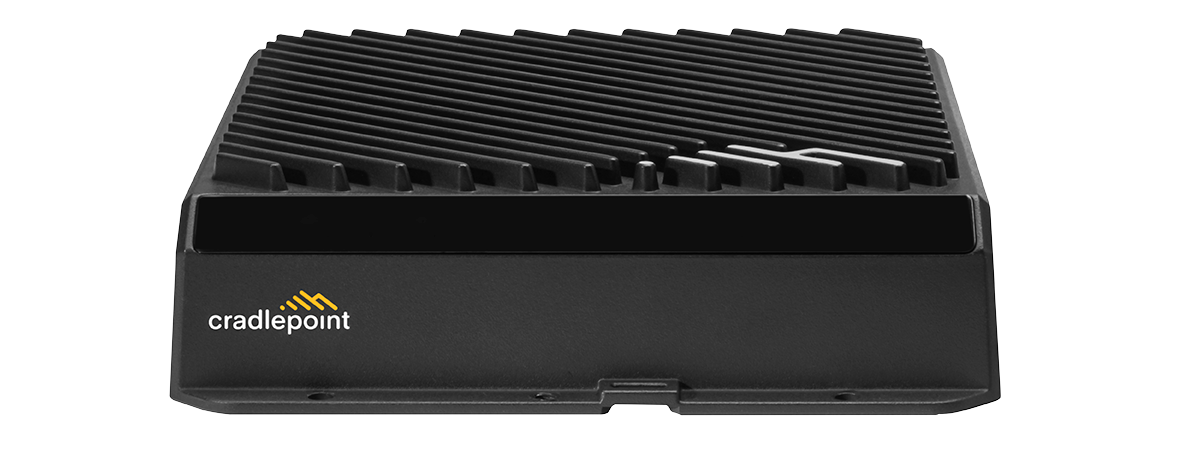

The Ericsson Cradlepoint R1900 is a ruggedized 5G networking platform built for persistent connectivity in vehicles. This part number, TAA-MBA5-19005GB-GA, is the TAA-compliant U.S. Federal Government SKU. It combines the R1900 hardware (5G with Wi-Fi and 4FF SIM, no AC power supply or antennas) with 5-year Ericsson NetCloud Mobile Performance Essentials and Advanced plans. It suits agencies and fleet operators that need a compliant, centrally managed mobile network in the vehicle.

The embedded 5G NR FR1 modem supports NSA and SA operation and falls back to LTE Advanced Pro Category 20 when a vehicle leaves 5G coverage. Rated peak rates reach 4.14 Gbps downlink and 660 Mbps uplink, with 4x4 MIMO and dual SIM slots. The modem carries AT&T, T-Mobile and Verizon certifications and holds FirstNet Trusted, Verizon Frontline Verified and T-Mobile Connecting Heroes public safety certifications. CBRS Band 48 covers private cellular networks. On the local side you get four GbE LAN/WAN ports and 2x2 MU-MIMO dual-band Wi-Fi 6. The unit also provides Bluetooth LE 5.2, RS-232 serial, USB 2.0 and 8-pin GPIO. Discrete GNSS with dead reckoning supports GPS, Galileo, GLONASS and BeiDou for automatic vehicle location.

The R1900 is built for harsh installs. It carries IP64 protection, a -30 °C to 75 °C operating range and 9–36 VDC input with ignition sensing and ISO 7637-2 transient protection. Approvals include E-Mark, SAE J1455, EN 50155, NFPA 130, MIL-STD-810G shock and vibration, and Class I Div 2. Optional RX30 managed accessories add four PoE ports, or four GbE ports and a second modem for dual-carrier connectivity.

The Essentials package includes NetCloud Manager, software updates and 24x7 support for the full term. The limited lifetime warranty applies while the subscription is active. The Advanced plan adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps.

Ideal for

  • Federal agency and public safety vehicles requiring TAA-compliant 5G connectivity
  • Police, fire and EMS fleets using FirstNet or Verizon Frontline networks
  • Automatic vehicle location and fleet tracking with GNSS dead reckoning
  • Light rail and transit vehicles needing EN 50155 and NFPA 130 approved equipment
  • Mobile command units running containerized edge applications and PoE devices via RX30

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only)
3g Bands
Bands 1, 2, 3, 4, 5, 6, 8, 9, 19
GNSS GPS
Discrete active GPS with dead reckoning
Modulation
5G FR1: up to 256 QAM downlink and uplink (carrier equipment dependent)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC; IC; CE; RCM
Technology
5G FR1 NSA/SA and LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
4G LTE Bands
FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; LTE + 5G NR ENDC: 1 CA DL / 1 CA UL
Gcf Global Operators
GCF members directory
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Ptcrb North America Operators
PTCRB operators
Network Operator Certifications
AT&T, EE, Telstra, T-Mobile, Verizon
Public Safety Network Certifications
ESN (4G); FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline Verified

Power

Features
ISO 7637-2 reverse polarity/transient protection; ignition sensing
Required
3 A for 9–24 VDC, 2.5 A above 24 VDC); 4-pin 2x2 Molex micro-fit; 24 VDC nominal for light rail
Consumption
Sleep 15 mW; Idle 11 W; Typical 19 W; Heavy 22 W

General

MPN
TAA-MBA5-19005GB-GA
UPC
810007809489
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R1900
Region
United States Federal Government
Package Plan
5-Year NetCloud Mobile Performance Essentials + Advanced Plans
TAA Compliant
TAA compliant
Product Status
Active
Shipping Weight
6.32 lb
Subscription Term
5 years
Hardware Configuration
5G with Wi-Fi & 4FF SIM, no AC power supply or antennas

GNSS GPS

Power
3.1–3.8 V supply; 30 mA max current
Accuracy
Autonomous 1 meter
Protocols
NMEA 0183; TAIP
Frequencies
L1 (1559–1606 MHz)
Sensitivity
Acquisition -147 dBm; Tracking -165 dBm; Reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Time TO First Fix
30 seconds (cold start)

Physical

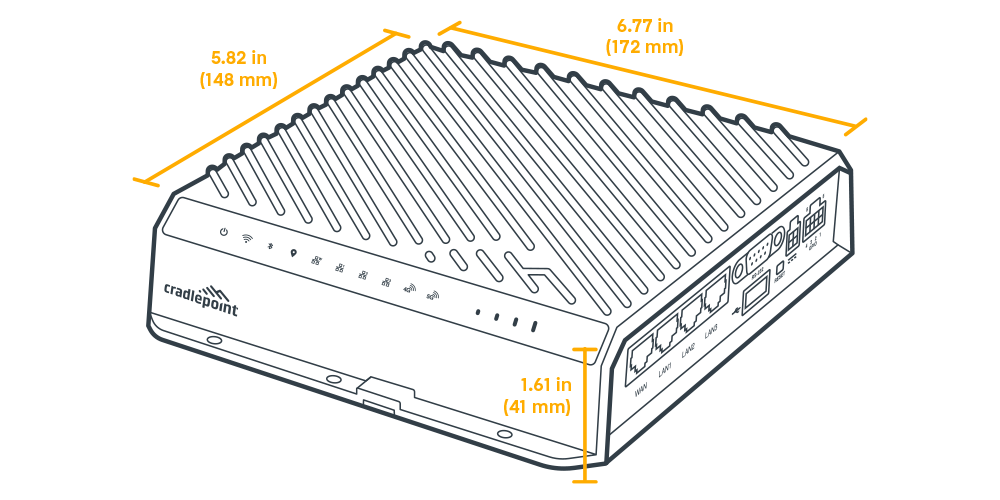

Size
172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)
Weight
0.98 kg (2.15 lb)

Interfaces

PoE
Optional RX30 PoE switch; 4 x 802.3bt Type 3 (up to 60 W per port); 60 W total budget
Modem

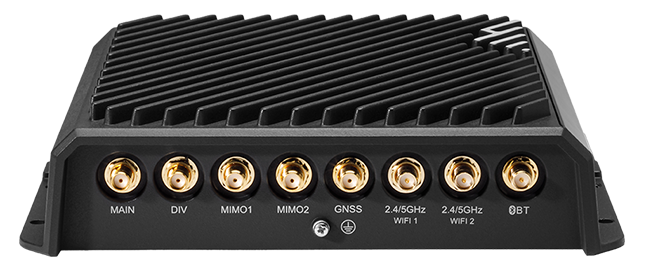

Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem; 4 x SMA cellular antenna connectors
WI FI
Dual-radio dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3; 802.11k/v; Wi-Fi Alliance Certified
Ethernet

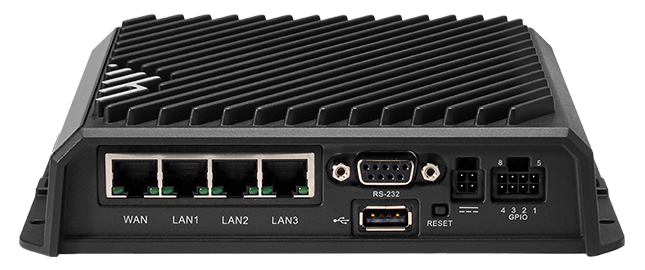

4 x GbE (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Bluetooth
Bluetooth LE 5.2; 10 dBm max TX; 1 x RP-SMA connector
Expansion Console
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x DB9 RS-232; 1 x 8-pin GPIO (2x4 Molex micro-fit); optional RX30-POE / RX30-MC

Performance

Stateful Firewall
940 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Sessions Tcp
32,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
340,644 hours (Telcordia SR332 at 25 °C)

WI FI Power

EU
2.4 GHz: 14.00 dBm; 5500–5700 MHz: 18.00 dBm (conducted)
Fcc
2.4 GHz: 23 dBm; 5260–5825 MHz: 21.90 dBm (conducted)
Japan
2.4 GHz: 16.92 dBm; 5500–5720 MHz: 21.00 dBm (conducted)
Canada
2.4 GHz: 23.00 dBm; 5500–5580 MHz: 22.00 dBm; 5660–5825 MHz: 21.89 dBm (conducted)
Global Safe Mode
2.4 GHz: 14 dBm (conducted)

Environmental

Humidity
Operating 5%–95%; Storage 5%–95%
Temperature
Operating -30 °C to 75 °C; Storage -40 °C to 85 °C
Ingress Protection
IP64 (dust tight and splashing water)

Certifications

Rail
EN 45545-2:2020 HL3; EN 50121-3-2; EN 50155 Class S1
Safety
UL/cUL; CB Scheme; EN 60950-1; EN 62368-1
Vehicle
E-Mark; SAE J1455
Security
FIPS 140-3 Level 1 module in process (R1900 FIPS models only)
Shock Vibration
MIL-STD-810G, Section 2.2.2, Procedure 1 (Shock, Vibration)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
Ericsson NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 6 GB

Product Summary

PoE
Yes, with RX30-PoE
WI FI
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Mobile
GPS GNSS
Discrete active GNSS with dead reckoning
5G Status
5G Embedded
Bluetooth
Yes, embedded Bluetooth version 5.2
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
1
Ethernet Ports
4 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add 4 GbE PoE ports or 4 GbE and second modem
Dual Modem Support
Yes, with RX30-MC
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
5G/4G Dual Connectivity
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S), GCF (global)

Questions buyers ask

What does the TAA-MBA5-19005GB-GA part number include?

It includes Cradlepoint R1900 hardware (5G with Wi-Fi and 4FF SIM) and 5-year Ericsson NetCloud Mobile Performance Essentials and Advanced plans. It is the TAA-compliant U.S. Federal Government ordering option.

Are antennas or a power supply included?

No. This configuration ships without an AC power supply or antennas. The router is designed for 9–36 VDC vehicle power through a 4-pin Molex micro-fit connector with an in-line fuse. It provides 4 SMA cellular, 2 RP-SMA Wi-Fi, 1 RP-SMA Bluetooth and 1 SMA GNSS antenna connectors.

What does the Advanced plan add?

The Advanced Mobile Performance plan adds threat management, web filtering, application visibility, analytics and advanced GNSS/GPS functionality, including location tracking and cellular coverage maps.

Can the R1900 connect to two carriers at once?

Yes, with the optional RX30-MC managed accessory. It adds a second modular modem and four GbE ports for simultaneous dual-carrier connectivity. The RX30-PoE alternative adds four 802.3bt PoE ports instead.

What support and warranty come with this bundle?

Essentials packages include NetCloud Manager, software updates and support for the full 5-year term. Phone support runs 24 hours on weekdays with emergency response on weekends, web support is 24x7 and chat is 24x5. The hardware carries a limited lifetime warranty while the NetCloud subscription is active.
