Cradlepoint5G & LTE Routers

Cradlepoint R1900 5G Ruggedized Vehicle Router, TAA, 1-Year NetCloud Mobile Performance Essentials + Advanced

5GMPN TAA-MBA1-19005GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$2,199.00$2,375.00Save $176

In stockShips from the US

Included subscription · 1 year
1 year3 years+$5005 years+$1,0006 years+$881.68
Compliance · TAA compliant
Standard−$8.75TAA compliant
Region · Global
North America+$388.38Global
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 20 configurations

Datasheets & documents

Overview

The Cradlepoint R1900 (TAA-MBA1-19005GB-GA) is a ruggedized metal 5G router for in-vehicle networks. It is sold as a TAA-compliant U.S. Federal Government ordering option and includes a 1-year Ericsson NetCloud Mobile Performance Essentials + Advanced plan. The router has an embedded 5G NR and LTE Category 20 modem, dual 4FF SIM slots, dual-band Wi-Fi 6, four switchable Gigabit Ethernet ports, Bluetooth 5.2 and discrete GNSS with dead reckoning. It is rated IP64 and carries vehicle, rail and Class I Div 2 certifications. The AC power supply and antennas are not included.

  • Embedded 5G FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO, dual 4FF SIM slots and peak rates of up to 4.14 Gbps down / 660 Mbps up
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with WPA3, plus embedded Bluetooth LE 5.2

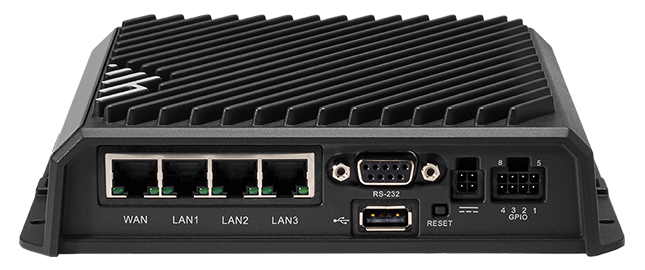

  • 4 x GbE LAN/WAN switchable ports, USB 2.0, DB9 RS-232 serial and 8-pin GPIO
  • Discrete active GNSS with dead reckoning, concurrent GPS, Galileo, GLONASS and BeiDou reception for AVL integration
  • Ruggedized metal build: IP64, -30 °C to 75 °C operation, 9–36 VDC with ignition sensing, MIL-STD-810G, E-Mark, EN 50155 and Class I Div 2
  • Expandable with optional RX30-POE (4 x PoE) or RX30-MC (second modem plus 4 GbE) managed accessories
  • TAA-compliant SKU with a 1-year NetCloud Mobile Performance Essentials + Advanced plan
  • Keeps vehicle crews online by switching from 5G to Cat 20 LTE automatically when 5G coverage drops

The Ericsson Cradlepoint R1900 is a ruggedized 5G networking platform built to keep vehicles connected. Police and fire fleets, transit agencies, utilities and federal field teams use it to link laptops, cameras, sensors and telematics in the vehicle to a single cloud-managed router. This SKU (TAA-MBA1-19005GB-GA) is the TAA-compliant U.S. Federal Government ordering option. It bundles the R1900 5G router with Wi-Fi and 4FF SIM support with a 1-year Ericsson NetCloud Mobile Performance Essentials + Advanced plan. It ships without an AC power supply or antennas.

The embedded modem supports 5G FR1 in NSA and SA modes and LTE Advanced Pro Category 20. It has 4x4 MIMO, dual SIM slots and peak rates of up to 4.14 Gbps downlink and 660 Mbps uplink. When the vehicle leaves 5G coverage, the router switches to Cat 20 LTE automatically. The modem holds FirstNet Trusted, Verizon Frontline Verified and T-Mobile Connecting Heroes public safety certifications, and it supports CBRS Band 48 for private cellular networks. In-cab devices connect over 2x2 MU-MIMO dual-band Wi-Fi 6, four GbE LAN/WAN ports, USB, RS-232 serial, GPIO and Bluetooth LE 5.2.

The R1900 is designed for harsh environments. It is rated IP64 and operates from -30 °C to 75 °C on 9–36 VDC power. It has ISO 7637-2 transient protection, ignition sensing, MIL-STD-810G shock and vibration certification, E-Mark, EN 50155 rail certification and Class I Div 2 hazardous-location certification. Discrete GNSS with dead reckoning feeds Automatic Vehicle Location systems. A quad-core ARMv8 CPU runs Docker containers at the edge.

The Essentials package covers NetCloud Manager device management, software updates, 24x7 support and a limited lifetime warranty for the full subscription term. The Advanced plan adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps. The optional RX30-MC accessory adds a second modem, and the optional RX30-POE adds four PoE ports.

Ideal for

  • Police, fire and EMS vehicles on FirstNet or other public safety networks
  • Federal and government fleets that require TAA-compliant procurement
  • Transit buses and light rail needing EN 50155 and NFPA 130 certified connectivity
  • Utility and field-service trucks running AVL, telematics and in-vehicle Wi-Fi
  • Edge applications in vehicles running Docker containers alongside the router

Specifications

Power

Features
ISO 7637-2 reverse polarity and transient protection; ignition sensing (auto ON, time-delay OFF)
Required
9–36 VDC (in-line fuse required in vehicles: 3 A for 9–24 VDC, 2.5 A for >24 VDC); 4-pin 2x2 Molex micro-fit; 24 VDC nominal for light rail
Consumption
Sleep 15 mW; Idle 11 W; Typical 19 W; Heavy 22 W

General

MPN
TAA-MBA1-19005GB-GA
UPC
840292705074
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R1900
FIPS Model
Non-FIPS model
Package Plan
1-Year NetCloud Mobile Performance Essentials + Advanced Plans
Region Market
United States Federal Government
TAA Compliant
TAA-compliant SKU
Shipping Weight
3.00 lb shipping weight
Subscription Term
1 year
Hardware Configuration
5G with Wi-Fi & 4FF SIM; no AC power supply or antennas

GNSS GPS

Power
3.1–3.8 V supply; 30 mA max current
Accuracy
Autonomous 1 meter
Protocols
NMEA 0183; TAIP
Frequencies
L1 (1559–1606 MHz)
Sensitivity
Acquisition -147 dBm; Tracking -165 dBm; Reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Time TO First Fix
30 seconds (cold start)

Physical

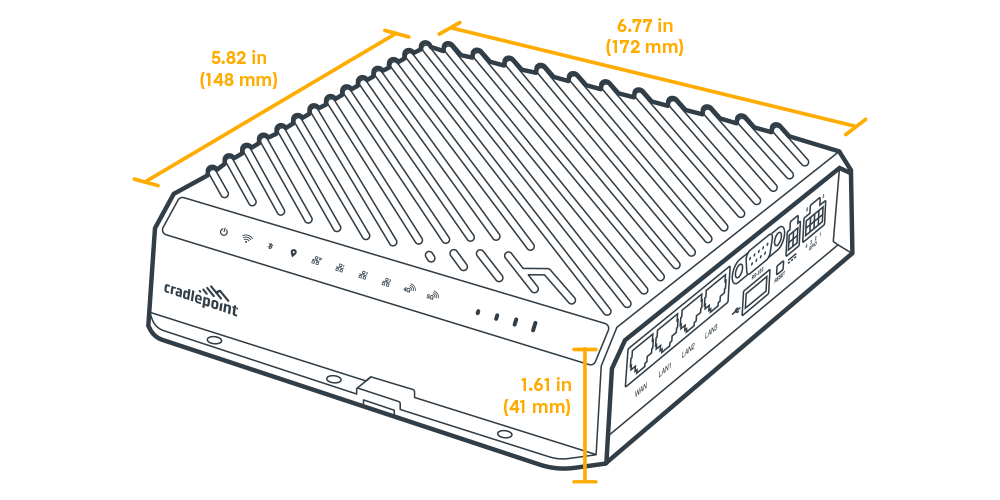

Size
172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)
Weight
0.98 kg (2.15 lb)

Interfaces

PoE
4 x PoE 802.3bt Type 3 (up to 60 W per port); 60 W total budget
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v; Wi-Fi Alliance Certified
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem; 4 x SMA cellular antenna connectors
Ethernet
4 x GbE (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Bluetooth
Bluetooth LE 5.2; 10 dBm max TX; 1 x RP-SMA connector
Expansion Console
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x DB9 RS-232; 1 x 8-pin GPIO (2x4 Molex micro-fit, 3 mm locking); optional RX30-POE or RX30-MC

Wi-Fi Power

EU
2.4 GHz: 14.00 dBm; 5500–5700 MHz: 18.00 dBm (conducted)
Fcc
2.4 GHz: 23 dBm; 5260–5825 MHz: 21.90 dBm (conducted)
Japan
2.4 GHz: 16.92 dBm; 5500–5720 MHz: 21.00 dBm (conducted)
Canada
2.4 GHz: 23.00 dBm; 5500–5580 MHz: 22.00 dBm; 5660–5825 MHz: 21.89 dBm (conducted)
Global Safe Mode
2.4 GHz: 14 dBm (conducted)

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
940 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
340,644 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
Operating 5%–95%; Storage 5%–95%
Temperature
Operating -30 °C to 75 °C (-22 °F to 167 °F); Storage -40 °C to 85 °C (-40 °F to 185 °F)
Ingress Protection
IP64 (dust tight and splashing water)

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
GNSS GPS
Discrete active GPS with dead reckoning
TX Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only) — typical conducted
LTE Bands
FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Modulation
DL up to 256 QAM; UL up to 256 QAM (on particular carrier equipment)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Carrier Aggregation
LTE: DL up to 7 CA, UL up to 2 CA; LTE + 5G NR ENDC: DL 1 CA, UL 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
ESN (4G); FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T; EE; Telstra; T-Mobile; Verizon

Certifications

Rail
EN 45545-2:2020 HL3; EN 50121-3-2 (0.5 & 1 kV Criteria A; 1.5 kV Criteria C); EN 50155 Class S1
Safety
UL/cUL; CB Scheme; EN 60950-1; EN 62368-1
Vehicle
E-Mark; SAE J1455
Security
FIPS 140-3 Level 1 module in process (R1900 FIPS models only)
Shock Vibration
MIL-STD-810G, Section 2.2.2, Procedure 1 (Shock, Vibration)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Included for the full subscription term
Warranty
Limited lifetime warranty with an active NetCloud Service plan
Service Plans
Ericsson NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 6 GB

Product Summary

PoE
Yes, with RX30-PoE
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Mobile
GPS GNSS
Discrete active GNSS with dead reckoning
5G Status
5G Embedded
Bluetooth
Yes, embedded Bluetooth version 5.2
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
1
Ethernet Ports
4 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add 4 GbE PoE ports or 4 GbE and second modem
Dual Modem Support
Yes, with RX30-MC
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
5G/4G Dual Connectivity
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Does this R1900 bundle include antennas or a power supply?

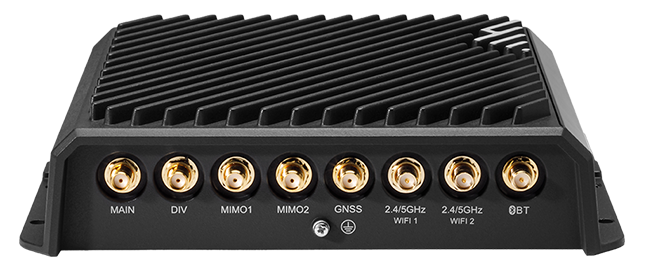

No. This SKU is configured as 5G with Wi-Fi and 4FF SIM, with no AC power supply or antennas. The router has 4 SMA cellular, 2 RP-SMA Wi-Fi, 1 RP-SMA Bluetooth and 1 SMA GNSS antenna connectors, and it runs on 9–36 VDC vehicle power.

What does the NetCloud Advanced plan add to Essentials?

Essentials provides NetCloud Manager device management, software updates, 24x7 support and a limited lifetime warranty for the term. Advanced adds threat management, web filtering, application visibility, analytics, and advanced GNSS functions including location tracking and cellular coverage maps.

Is this SKU TAA compliant?

Yes. TAA-MBA1-19005GB-GA is the TAA-compliant U.S. Federal Government ordering option for the R1900 with a 1-year Mobile Performance Essentials + Advanced plan.

Can the R1900 run on two carriers at once?

The embedded modem has dual 4FF SIM slots. For simultaneous dual-carrier connectivity, the optional RX30-MC managed accessory adds a second modular modem and four GbE ports.

Is this a FIPS model?

No. This is the standard, non-FIPS R1900. The FIPS 140-3 Level 1 module in process applies to R1900 FIPS models only.
