Cradlepoint5G & LTE Routers

Cradlepoint R1900 FIPS 5G Rugged Vehicle Router with 3-Year NetCloud Mobile Performance Essentials + Advanced (TAA)

5GMPN TAA-MBA3-19005GB-FA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$3,378.00$3,675.00Save $297

In stockShips from the US

Included subscription · 3 years
1 year−$990.623 years5 years+$9816 years−$497.32
Compliance · TAA compliant
Standard−$1,387.75TAA compliant
Region · North America
North AmericaGlobal−$879
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 20 configurations

Datasheets & documents

Overview

This TAA-compliant FIPS configuration of the Cradlepoint R1900 is built for U.S. Federal Government in-vehicle deployments. The ruggedized, IP64-rated 5G router has an embedded 5G NR / LTE Category 20 modem with dual SIM slots, dual-band Wi-Fi 6, four switchable GbE ports, and discrete GNSS with dead reckoning. It ships with 3 years of Ericsson NetCloud Mobile Performance Essentials plus the Advanced Plan, which covers cloud management, support and advanced security. The SKU includes no AC power supply, antennas or SIM.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Category 20 modem with dual 4FF SIM slots; peak rates up to 4.14 Gbps down and 660 Mbps up
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 plus 4 x GbE LAN/WAN switchable ports and embedded Bluetooth 5.2
  • Discrete active GNSS (GPS, Galileo, GLONASS, BeiDou) with dead reckoning for AVL integration
  • Ruggedized metal, IP64 enclosure; 9-36 VDC input with ignition sensing; -30 °C to 75 °C operation
  • TAA-compliant FIPS SKU for the U.S. Federal Government with a FIPS 140-3 Level 1 module in process
  • Expandable with the RX30-POE (4 x PoE) or the RX30-MC (second modem + 4 x GbE) managed accessories
  • 3-year NetCloud Mobile Performance Essentials + Advanced Plans with NetCloud Manager, support and threat management
  • Keeps vehicles connected: the router falls back from 5G to Cat 20 LTE automatically when a unit leaves 5G coverage

The Cradlepoint R1900 is a ruggedized 5G networking platform for vehicles and field fleets. This part, TAA-MBA3-19005GB-FA, is the TAA-compliant FIPS SKU for the United States Federal Government. It is bundled with a 3-year Ericsson NetCloud Mobile Performance Essentials package and the Advanced Plan. The embedded 5G FR1 modem supports NSA and SA and has dual 4FF SIM slots. When a vehicle leaves 5G coverage, the router automatically connects to LTE Advanced Pro Category 20, with peak rates of up to 4.14 Gbps down and 660 Mbps up. The modem carries AT&T, T-Mobile and Verizon operator certifications, and it is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified for public safety.

Inside the vehicle, the R1900 provides dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 and four GbE ports that can each be set to LAN or WAN. It also has Bluetooth 5.2, USB, RS-232 serial and GPIO. The discrete GNSS receiver tracks GPS, Galileo, GLONASS and BeiDou and adds dead reckoning for Automatic Vehicle Location integration. The quad-core ARMv8 platform runs Docker containerized applications at the edge. The optional RX30 accessories add either four PoE ports or four GbE ports plus a second modem for dual-carrier connectivity.

The R1900 is designed for harsh installations. It accepts 9-36 VDC input with ignition sensing and ISO 7637-2 protection, operates from -30 °C to 75 °C, and holds E-Mark, SAE J1455, EN 50155, MIL-STD-810G, NFPA 130 and Class I Div 2 certifications. This FIPS model has a FIPS 140-3 Level 1 module in process.

The Essentials package includes NetCloud Manager management and software updates, 24x7 support and a limited lifetime warranty for the full subscription term. The Advanced Plan adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps. The Cradlepoint R1900 datasheet is available as a reference document.

Ideal for

  • Federal agency vehicle fleets that require TAA-compliant, FIPS-configured connectivity
  • Public safety and first-responder vehicles on FirstNet, T-Mobile Connecting Heroes or Verizon Frontline networks
  • Transit buses and light rail requiring EN 50155, EN 45545-2 and NFPA 130 certified networking
  • Field-service and utility trucks integrating Automatic Vehicle Location via GNSS with dead reckoning
  • Mobile command units running containerized edge applications and PoE cameras via the RX30-POE

Specifications

Power

Connector
4-pin 2x2 Molex micro-fit
Protection
ISO 7637-2 reverse polarity and transient voltage protection
Fuse 9 24 Vdc
3 A fuse for 9–24 VDC installations
DC Input Range
9–36 VDC steady state (requires in-line fuse for vehicle installations)
Consumption Idle
11 W
Fuse Over 24 Vdc
2.5 A fuse for >24 VDC installations
Ignition Sensing
Ignition sensing (automatic ON & time-delay OFF)
Consumption Heavy
22 W
Consumption Sleep
15 mW
Light Rail Nominal
24 VDC nominal for light rail applications
Consumption Typical
19 W

General

MPN
TAA-MBA3-19005GB-FA
UPC
840292701007
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint R1900
Region
United States Federal Government
FIPS Sku
FIPS SKU (FIPS 140-3 variant)
Manufacturer
Ericsson Enterprise Wireless
TAA Compliant
TAA-compliant SKU (U.S. Federal Government ordering option)
Product Status
Active
Hardware Configuration
5G with Wi-Fi; 4FF SIM optional, not included; no AC power supply or antennas

Package

SIM Included
4FF SIM optional, not included
Antennas Included
No antennas included
AC Power Supply Included
No AC power supply included

Cellular

3g
WCDMA/UMTS/HSPA+
SIM
Dual 4FF SIM slots
SMS
Yes
GNSS
Discrete active GPS with dead reckoning
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
Modulation
DL/UL up to 256 QAM (carrier-equipment dependent)
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE Advanced Pro Cat 20 (3GPP Release 15)
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps
TX Power LTE
LTE bands: 23 dBm ± 1 (typical conducted)
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
Up to 4.14 Gbps
TX Power Endc
LTE + 5G NR EN-DC: 20 dBm ± 1 (typical conducted)
TX Power 5G NR
5G NR bands: 23 dBm ± 1.5 (typical conducted)
TX Power LTE Hpue
25 dBm ± 1 (B41 standalone mode only)
Carrier Aggregation LTE
LTE only: DL up to 7 CA, UL up to 2 CA
Carrier Aggregation Endc
LTE + 5G NR EN-DC: DL 1 CA, UL 1 CA
Private Cellular Network
Yes, including FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Public Safety Certifications
ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, EE, Telstra, T-Mobile, Verizon

GNSS GPS

Accuracy
Autonomous 1 meter
Protocols
NMEA 0183, TAIP
Frequencies
L1 (1559–1606 MHz)
Max Current
30 mA
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Voltage Supply
3.1-3.8 V
Time TO First Fix
30 seconds (cold start)
Sensitivity Tracking
-165 dBm
Sensitivity Acquisition
-147 dBm
Sensitivity Reacquisition
-159 dBm

Physical

Weight
0.98 kg (2.15 lb)

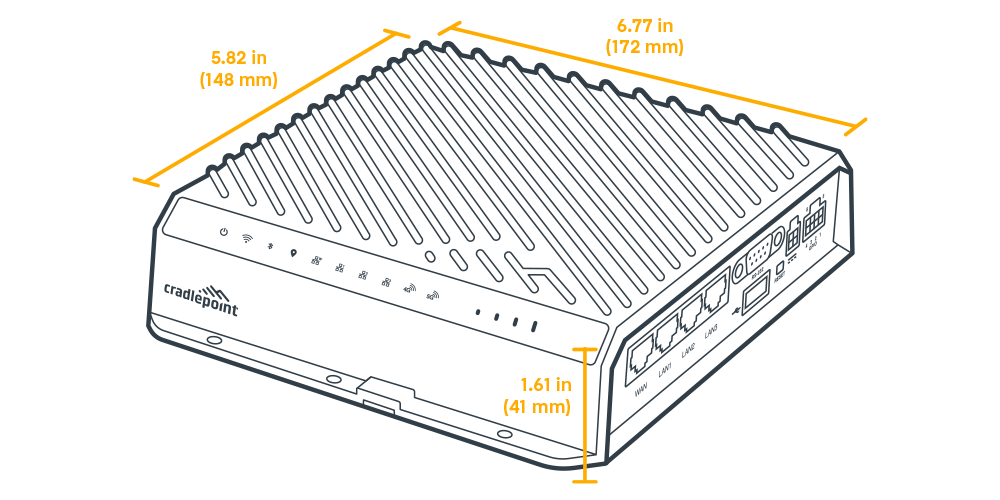

Dimensions
172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)
Shipping Weight
6.32 lbs

Interfaces

PoE
4 x 802.3bt Type 3 (up to 60 W per port), 60 W total budget
USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output)
Gpio
1 x 8-pin GPIO (2x4 Molex micro-fit, 3 mm locking)
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Category 20 modem
Serial
1 x DB9 RS-232
Ethernet
4 x GbE (LAN/WAN switchable)
Bluetooth
Embedded Bluetooth Low Energy 5.2
Wi-Fi Radio
Dual-radio, dual-band, concurrent (2.4 GHz and 5 GHz)
Wi-Fi Roaming
802.11k, 802.11v
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Wi-Fi Standard
2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
Wi-Fi Data Rates
574 Mbps (2.4 GHz), 1,200 Mbps (5 GHz)
Wi-Fi Regulatory
Global Optimized Wi-Fi & International SDR
Wi-Fi Certification
Wi-Fi Alliance Certified
Bluetooth Max TX Power
10 dBm
GNSS Antenna Connector
1 x SMA GNSS antenna connector
Wi-Fi Antenna Connectors
2 x RP-SMA Wi-Fi antenna connectors
Bluetooth Antenna Connector
1 x RP-SMA Bluetooth antenna connector

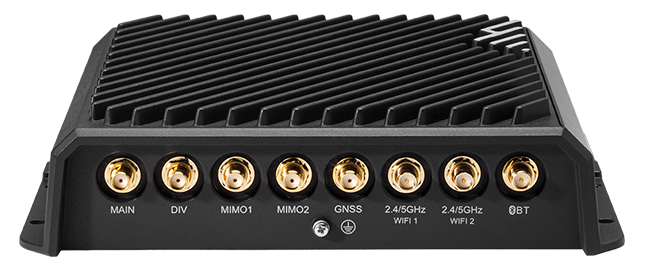

Cellular Antenna Connectors
4 x SMA cellular antenna connectors
Optional Managed Accessories
RX30-POE 4-port GbE PoE switch; RX30-MC modular modem slot & 4-port GbE switch

Wi-Fi Power

EU
2.4 GHz: 14.00 dBm; 5500-5700 MHz: 18.00 dBm (conducted)
Fcc
2.4 GHz: 23 dBm; 5260–5825 MHz: 21.90 dBm (conducted)
Japan
2.4 GHz: 16.92 dBm; 5500-5720 MHz: 21.00 dBm (conducted)
Canada
2.4 GHz: 23.00 dBm; 5500-5580 MHz: 22.00 dBm; 5660-5825 MHz: 21.89 dBm (conducted)
Global Safe Mode
2.4 GHz: 14 dBm (conducted)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

MTBF
340,644 hours (Telcordia SR332 at 25 °C)

Subscription

Plan
3-Year NetCloud Mobile Performance Essentials + Advanced Plans
Term
3 years
Plan Family
Ericsson NetCloud Mobile Performance
Essentials Support
Phone 24-hour weekdays (weekend emergency response), web 24x7, chat 24x5
Essentials Warranty
Limited lifetime warranty
Ordering Guide Plan
TAA Compliant NC FIPS — Essentials + Advanced

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail
EN 45545-2:2020 HL3; EN 50121-3-2 (0.5 & 1 kV Criteria A, 1.5 kV Criteria C); EN 50155 Class S1
Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Vehicle
E-Mark, SAE J1455
Security
FIPS 140-3 Level 1 module in process (FIPS models)
Shock Vibration
MIL-STD-810G, Section 2.2.2, Procedure 1 (Shock, Vibration)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with an active NetCloud subscription
Service Plans
Ericsson NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (adjustable for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 6 GB (adjustable for NetCloud Container Orchestrator)

Product Summary

PoE
Yes, with RX30-PoE
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
Category
Mobile
GPS GNSS
Discrete active GNSS with dead reckoning
5G Status
5G Embedded
Bluetooth
Yes, embedded Bluetooth 5.2
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
1
Ethernet Ports
4 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add 4 GbE PoE ports or 4 GbE and second modem
Dual Modem Support
Yes, with RX30-MC
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
5G/4G Dual Connectivity
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Does this R1900 bundle include antennas, a power supply or a SIM?

No. This configuration ships without an AC power supply or antennas, and the 4FF SIM is optional and not included. The router has 4 x SMA cellular, 2 x RP-SMA Wi-Fi, 1 x RP-SMA Bluetooth and 1 x SMA GNSS antenna connectors, and it accepts 9–36 VDC through a 4-pin Molex micro-fit connector.

What does the FIPS designation mean on this SKU?

This is the FIPS variant of the R1900 in a TAA-compliant configuration for U.S. Federal Government ordering. The R1900 FIPS models carry a FIPS 140-3 Level 1 module that is in process.

What is included in the Essentials and Advanced plans?

The 3-year Essentials package covers NetCloud Manager device management and software updates, 24x7 support and a limited lifetime warranty for the full subscription term. The Advanced Plan adds threat management, web filtering, application visibility, analytics, and advanced GNSS features such as location tracking and cellular coverage maps.

Can the R1900 use two carriers at once?

Yes, with the optional RX30-MC managed accessory. The RX30-MC adds a modular modem slot and four GbE ports for simultaneous dual-carrier connectivity. The RX30-POE is the alternative accessory, adding four 802.3bt PoE ports with a 60 W total budget.

Is the R1900 suitable for rail and hazardous environments?

Yes. The R1900 carries EN 50155 Class S1, EN 45545-2:2020 HL3, EN 50121-3-2 and NFPA 130 certifications for rail, along with Class I Div 2 for hazardous locations. It is IP64-rated and operates from -30 °C to 75 °C.
