Cradlepoint5G & LTE Routers

Cradlepoint R1900 5G Ruggedized In-Vehicle Router with 1-Year NetCloud Mobile Performance Essentials Plan (TAA)

5GMPN TAA-MB01-19005GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$1,999.00$2,175.00Save $176

In stockShips from the US

Included subscription · 1 year
1 year3 years+$5005 years+$1,0006 years+$881.68
Compliance · TAA compliant
Standard−$8.75TAA compliant
Region · Global
North America+$388.38Global
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 20 configurations

Datasheets & documents

Overview

The Cradlepoint R1900 is a ruggedized 5G router built for vehicles, bundled here with a 1-year Ericsson NetCloud Mobile Performance Essentials plan in a TAA-compliant SKU for U.S. Federal Government ordering. It pairs an embedded 5G NR FR1 and LTE Category 20 modem with dual 4FF SIM slots, 2x2 Wi-Fi 6, four Gigabit Ethernet ports, discrete GNSS with dead reckoning and an IP64 metal chassis. Cloud management, software updates and 24x7 support are included for the term. Antennas and an AC power supply are not included.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Category 20 modem with dual 4FF SIM slots and 4x4 MIMO
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with WPA3 and embedded Bluetooth LE 5.2

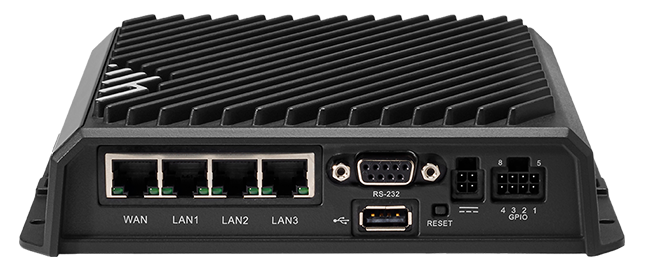

  • 4 x Gigabit Ethernet (LAN/WAN switchable), USB 2.0, DB9 RS-232 and 8-pin GPIO
  • Discrete active GNSS with dead reckoning (GPS, Galileo, GLONASS, BeiDou)
  • Ruggedized IP64 metal chassis, -30 °C to 75 °C operation, 9–36 VDC input with ignition sensing
  • Expandable with optional RX30-POE (4 x PoE 802.3bt) or RX30-MC (second modem plus 4 GbE)
  • 1-year NetCloud Mobile Performance Essentials plan in a TAA-compliant SKU for U.S. Federal Government ordering
  • Keep vehicles connected on the move with 5G and automatic fallback to Cat 20 LTE outside 5G coverage

The Cradlepoint R1900 is Ericsson's ruggedized 5G networking platform for in-vehicle deployments. This SKU, TAA-MB01-19005GB-GA, is the TAA-compliant U.S. Federal Government ordering option. It combines R1900 hardware (5G with Wi-Fi and 4FF SIM, no AC power supply or antennas) with a 1-year NetCloud Mobile Performance Essentials plan. It suits public safety, transit, utility and field-service fleets that need persistent connectivity and centralized IT control.

The embedded modem supports 5G NR FR1 in NSA and SA modes and falls back to LTE Advanced Pro Category 20 when a vehicle leaves 5G coverage. Peak rates are up to 4.14 Gbps downlink and 660 Mbps uplink, with 4x4 MIMO and dual SIM slots. It carries operator certifications for AT&T, T-Mobile, Verizon, EE and Telstra. Public safety certifications are FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified and ESN (4G). CBRS Band 48 private cellular is supported. Inside the vehicle, dual-band 2x2 MU-MIMO Wi-Fi 6, four GbE LAN/WAN switchable ports, Bluetooth LE 5.2, USB, RS-232 serial and GPIO connect cameras, laptops, sensors and telematics.

The R1900 is built for harsh duty. It has an IP64 metal chassis and a -30 °C to 75 °C operating range, plus 9–36 VDC input with ignition sensing and ISO 7637-2 transient protection. It carries E-Mark, SAE J1455, EN 50155 rail, MIL-STD-810G shock and vibration, and Class I Div 2 certifications. Discrete GNSS with dead reckoning feeds Automatic Vehicle Location systems. A quad-core ARMv8 CPU runs Docker containerized applications at the edge.

The Essentials plan includes NetCloud Manager device management and software updates for the full term. Support is 24x7, and the hardware carries a limited lifetime warranty while an active NetCloud plan is maintained. For more capability, you can add an Advanced plan at any time, and the optional RX30 accessories expand the router with PoE ports or a second modem.

Ideal for

  • Federal, state and local public safety vehicles that need FirstNet Trusted or Verizon Frontline Verified 5G connectivity
  • Transit buses and light rail requiring EN 50155, EN 45545-2 and NFPA 130 certified in-vehicle networking
  • Utility and field-service fleets with Automatic Vehicle Location, telematics and onboard Wi-Fi for crews
  • Mobile command units running cameras, PoE devices and containerized edge applications
  • Hazardous-location work vehicles needing Class I Div 2 certified routing

Specifications

Power

Features
ISO 7637-2 reverse polarity and transient protection; ignition sensing (auto ON, time-delay OFF)
Consumption
Sleep 15 mW; Idle 11 W; Typical 19 W; Heavy 22 W
Connector Type
4-pin 2x2 Molex micro-fit
DC Input Voltage
9–36 VDC steady state (requires in-line fuse for vehicle installations)
Fuse Requirement
3 A fuse for 9–24 VDC installations; 2.5 A fuse for > 24 VDC installations
Light Rail Nominal
24 VDC nominal for light rail applications

General

MPN
TAA-MB01-19005GB-GA
UPC
840292705173
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R1900
FIPS Model
Non-FIPS model
Package Plan
1-Year NetCloud Mobile Performance Essentials Plan
Region Market
United States Federal Government
TAA Compliant
TAA compliant (U.S. Federal Government ordering option)
Product Status
Active
Shipping Weight
3.00 lb
Subscription Term
1 year
Hardware Configuration
5G with Wi-Fi & 4FF SIM; no AC power supply or antennas

GNSS GPS

Power
3.1–3.8 V supply; 30 mA max current
Accuracy
Autonomous 1 meter
Protocols
NMEA 0183, TAIP
Frequencies
L1 (1559–1606 MHz)
Sensitivity
Acquisition -147 dBm; Tracking -165 dBm; Reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Time TO First Fix
30 seconds (cold start)

Physical

Size
172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)
Weight
0.98 kg (2.15 lb)

Interfaces

PoE
4 x PoE 802.3bt Type 3 (up to 60 W per port), 60 W total budget
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz); 2 x RP-SMA; Global Optimized Wi-Fi & International SDR; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v; Wi-Fi Alliance Certified
Modem

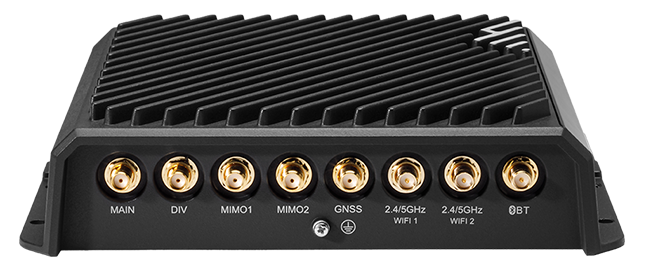

Embedded 5G NR FR1 low-/mid-band and LTE Cat 20 modem; 4 x SMA cellular antenna connectors
Ethernet
4 x GbE (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Bluetooth
Bluetooth LE 5.2, 10 dBm max TX; 1 x RP-SMA antenna connector
Expansion Console
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x DB9 RS-232; 1 x 8-pin GPIO (2x4 Molex micro-fit, 3 mm locking); optional RX30-POE or RX30-MC

Wi-Fi Power

EU
2.4 GHz: 14.00 dBm; 5500–5700 MHz: 18.00 dBm (conducted)
Fcc
2.4 GHz: 23 dBm; 5260–5825 MHz: 21.90 dBm (conducted)
Japan
2.4 GHz: 16.92 dBm; 5500–5720 MHz: 21.00 dBm (conducted)
Canada
2.4 GHz: 23.00 dBm; 5500–5580 MHz: 22.00 dBm; 5660–5825 MHz: 21.89 dBm (conducted)
Global Safe Mode
2.4 GHz: 14 dBm (conducted)

Performance

Stateful Firewall
940 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Sessions Tcp
32,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips App Aware Client Analytics
940 Mbps (IPS/Application Aware Services/Client Analytics)

Reliability

Calculated MTBF
340,644 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Cellular Modem

SMS
Yes
MIMO
4x4 MIMO
Umts 3g
WCDMA/UMTS/HSPA+
3g Bands
Bands 1, 2, 3, 4, 5, 6, 8, 9, 19
GNSS GPS
Discrete active GPS with dead reckoning
TX Power
5G NR 23 dBm ±1.5; EN-DC 20 dBm ±1; LTE 23 dBm ±1; LTE HPUE 25 dBm ±1 (B41 standalone only), typical conducted
LTE Bands
FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Modulation
5G FR1: up to 256 QAM downlink and uplink (on particular carrier equipment)
Peak Rates
Up to 4.14 Gbps downlink; up to 660 Mbps uplink
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
5G FR1 NSA/SA and LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Carrier Aggregation
LTE: up to 7 CA DL / 2 CA UL; LTE + 5G NR EN-DC: 1 CA DL / 1 CA UL
Gcf Global Operators
GCF members directory
Private Cellular Network
Yes, including FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (worldwide)
Public Safety Certifications
ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Ptcrb North America Operators
PTCRB operators
Network Operator Certifications
AT&T, EE, Telstra, T-Mobile, Verizon

Certifications

Rail
EN 45545-2:2020 HL3; EN 50121-3-2 (surge 0.5 & 1 kV Criteria A, 1.5 kV Criteria C); EN 50155 Class S1
Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Vehicle
E-Mark, SAE J1455
Security
FIPS 140-3 Level 1 module in process (R1900 FIPS models only)
Shock Vibration
MIL-STD-810G, Section 2.2.2, Procedure 1 (shock, vibration)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Support included for the full subscription term
Warranty
Limited lifetime warranty with an active NetCloud Service plan
Service Plans
Ericsson NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Support Channels
Phone 24-hour weekdays with weekend emergency response; web 24x7; chat 24x5
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (adjustable for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 6 GB (adjustable for NetCloud Container Orchestrator)

Product Summary

PoE
Yes, with RX30-PoE
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
Category
Mobile
GPS GNSS
Discrete active GNSS with dead reckoning
5G Status
5G Embedded
Bluetooth
Yes, embedded Bluetooth 5.2
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
1
Ethernet Ports
4 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add 4 GbE PoE ports or 4 GbE and second modem
Dual Modem Support
Yes, with RX30-MC
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
5G/4G Dual Connectivity
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Are antennas and a power supply included with TAA-MB01-19005GB-GA?

No. This configuration is 5G with Wi-Fi and 4FF SIM and ships without an AC power supply or antennas. The router has 4 SMA cellular connectors, 2 RP-SMA Wi-Fi connectors, 1 RP-SMA Bluetooth connector and 1 SMA GNSS connector, and it takes 9–36 VDC through a 4-pin Molex micro-fit connector.

What does the NetCloud Mobile Performance Essentials plan include?

For the 1-year term, it includes NetCloud Manager device management and software updates. Support is 24x7: phone 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. The hardware carries a limited lifetime warranty while an active NetCloud plan is maintained.

Does the R1900 support dual carriers?

The embedded modem has dual 4FF SIM slots. For simultaneous dual-carrier connectivity, you can add the optional RX30-MC accessory, which provides a second modular modem slot and 4 more GbE ports.

Is this router certified for public safety networks?

Yes. It holds FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified and ESN (4G) certifications. It also carries operator certifications for AT&T, T-Mobile, Verizon, EE and Telstra.

What happens when the vehicle leaves 5G coverage?

The R1900 automatically connects over LTE Advanced Pro Category 20, which offers up to 7 downlink carrier aggregation on LTE.
