Cradlepoint R2105 5G Exterior-Mount Rugged Router with Wi-Fi 6 and 1-Year NetCloud Mobile Performance Essentials

5GMPN MB01-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$2,196.13$2,399.99Save $203.86

In stockShips from the US

Included subscription · 1 year
1 year3 years+$156.495 years+$604.86
Compliance · Standard
StandardTAA compliant+$203.86
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

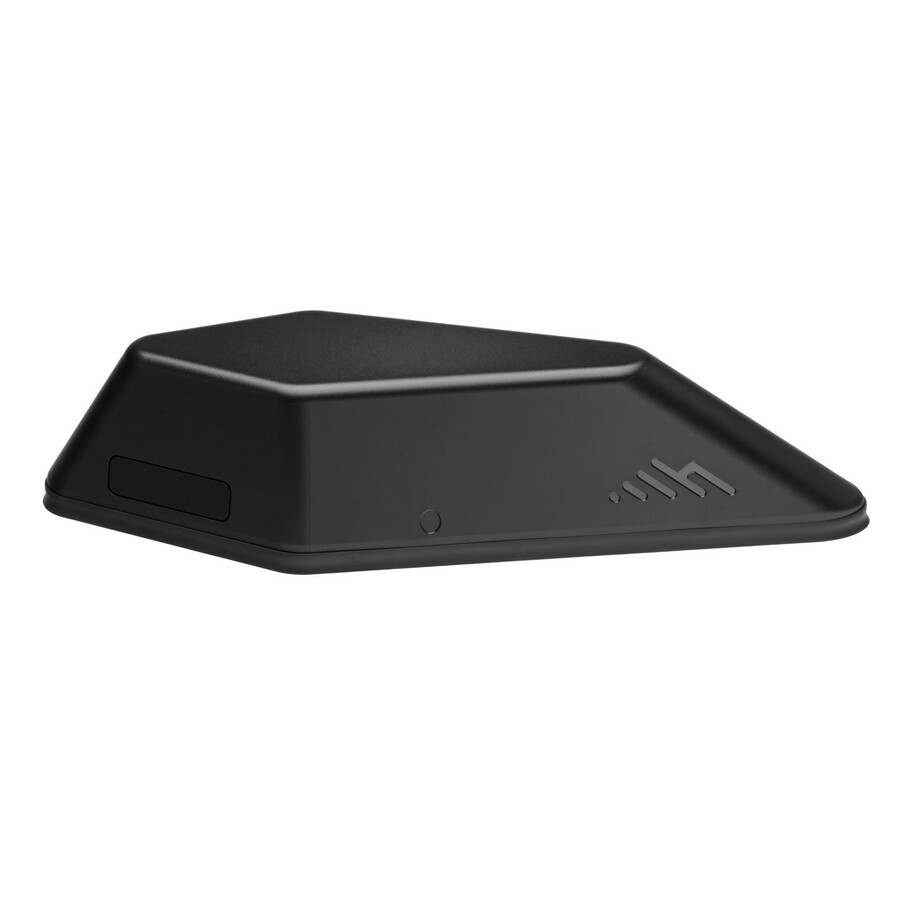

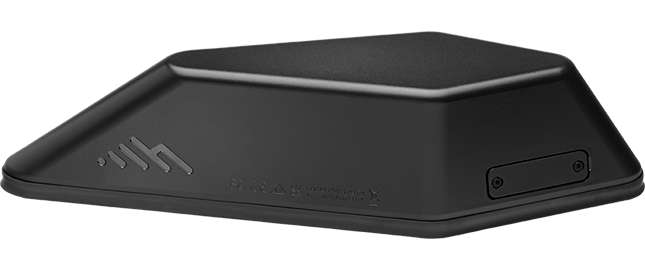

The Cradlepoint R2105 (MB01-2105-5GB-GA) is an exterior-mounted 5G router for vehicle roofs and IoT cabinets. One sealed, IP67 and IK09-rated housing holds the 5G NR/Cat 20 LTE modem, four internal cellular antennas and Wi-Fi 6 router. A single 2.5 GbE cable connects it to the network, and it can draw 802.3at PoE power. This All Regions package includes a 1-year NetCloud Mobile Performance Essentials plan. The SIM and AC power supply are not included.

  • Integrated 5G NR FR1 (NSA/SA) and Cat 20 LTE modem with 4 internal cellular antennas: up to 4.14 Gbps down, 660 Mbps up
  • Dual-radio, dual-band 2x2 MU-MIMO Wi-Fi 6 with DFS
  • 1 x 2.5 GbE RJ45 (LAN) on a 380 mm shielded flat cable; powered by 9–36 VDC or 802.3at PoE
  • Exterior-mount housing rated IP67 and IK09 with salt mist corrosion resistance
  • Works as a standalone router or as a captive 5G modem for supported Cradlepoint routers
  • Passive GNSS and quad-core ARMv8 edge compute with Docker containers
  • 1-year NetCloud Mobile Performance Essentials plan with 24x7 support
  • Cut install time and signal loss by mounting modem, antennas and router together with no coax runs

The Ericsson Cradlepoint R2105 is part of the R2100 Series of 5G ruggedized routers, built for vehicle and IoT deployments. Rather than running coax from roof antennas to a router inside the cab, the R2105 puts the modem, antennas and router in one aerodynamic housing. It mounts on the roof of a vehicle or on an IoT cabinet enclosure. That design gives mass transit, public safety and field organizations strong reception with no cable signal loss and a simpler install.

The embedded modem supports 5G NR FR1 in NSA and SA modes plus Cat 20 LTE Advanced Pro, with 4x4 MIMO, dual 4FF SIM slots and peak rates up to 4.14 Gbps down and 660 Mbps up. It carries AT&T, T-Mobile and Verizon certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications. Dual-band 2x2 Wi-Fi 6 serves around 100 typical clients. A 380 mm flat, shielded 2.5 GbE cable carries data, and the router takes power from 9–36 VDC with ignition sensing or from 802.3at PoE. Passive GNSS supports Automatic Vehicle Location, and a quad-core ARMv8 CPU runs Docker containers.

The R2105 can work as a self-contained 5G router. It can also act as a captive 5G modem for a supported Cradlepoint router, where NetCloud manages both as one device without a separate license. The housing is rated IP67 and IK09, resists salt mist corrosion, and meets MIL-STD-810G, E-Mark and SAE J1455 Category 2. The included 1-year Essentials plan provides NetCloud Manager, software updates, 24x7 support and the limited lifetime warranty while active. In the European Union, 5 GHz Wi-Fi is limited to client mode.

Ideal for

  • Roof-mounted 5G for buses, trains and mass transit vehicles
  • Public safety vehicles on FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
  • Adding 5G to an existing Cradlepoint in-vehicle router as a captive modem
  • Outdoor IoT cabinets and roadside enclosures that need sealed 5G connectivity

Specifications

Power

Input
9–36 VDC via 380 mm cable with Molex micro-fit (3 A / 2.5 A fuse), or 802.3at PoE (30 W)
Features
Ignition sensing (automatic ON, time-delay OFF)
PoE Class
802.3at Class 4 PD (30 W)
Consumption
R2105: sleep 50 mW; idle 8 W; typical 14.5 W; heavy 17 W

General

MPN
MB01-2105-5GB-GA
UPC
840292702394
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2105 (R2100 Series)
Region
All Regions
Package Plan
1-Year NetCloud Mobile Performance Essentials Plan
Subscription Term
1 year
Hardware Configuration
R2105 5G router with Wi-Fi; integrated antennas; SIM and AC power supply not included

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Passive GNSS
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 x internal cellular antennas
Modulation
Up to 256 QAM DL/UL (carrier-dependent)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
5G FR1 NSA/SA + Cat 20 LTE Advanced Pro; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Transmit Power
5G NR 23 dBm ± 1.5; EN-DC 20 dBm ± 1; LTE 23 dBm ± 1; HPUE 25 dBm ± 1 (B41 SA)
Carrier Aggregation
LTE: up to 7 CA DL / 2 CA UL; EN-DC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (worldwide)
Public Safety Certifications
FirstNet Trusted™, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
1.46 kg (3 lb 4 oz)

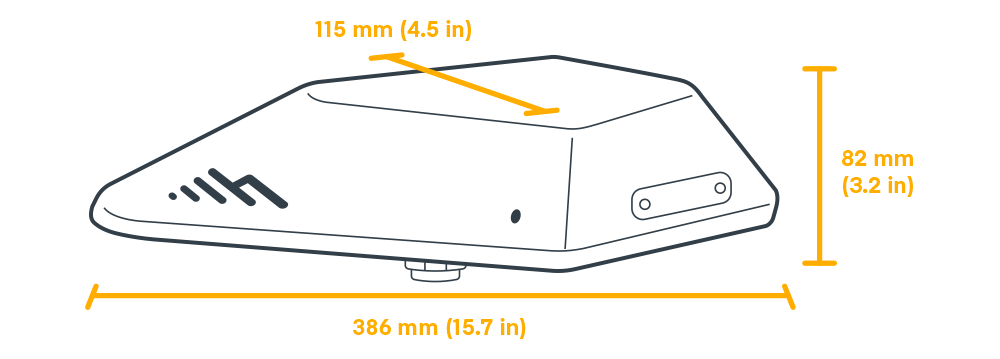

Dimensions
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)

Interfaces

GNSS
Passive GNSS (multiplexed with internal cellular antennas)
Wi-Fi
Dual-band 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR; 5 GHz client mode only in the EU
Modem
Embedded 5G NR FR1 low/mid-band + Cat 20 LTE modem
Ethernet

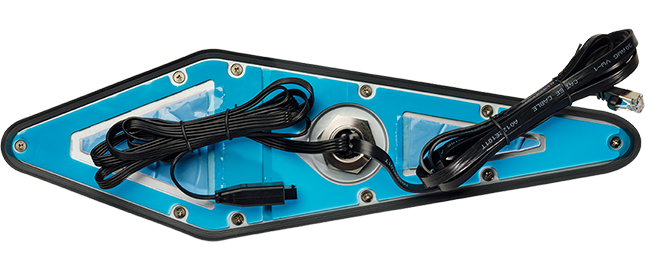

1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded flat CAT5e cable

Wi-Fi Power

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Ipsec VPN
300 Mbps point-to-point IPsec VPN
Stateful Firewall
900 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Tcp Sessions
32,000
Ips App Aware Client Analytics
650 Mbps

Reliability

MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Vlans
Up to 64 Layer 2/Layer 3 VLANs
Shock Vibration
MIL-STD-810G Sec. 2.2.2, Procedures 1 and 5

Environmental

Humidity
5%–95% operating and storage
Impact Protection
IK09 (protected against 10 joules impact)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Ingress Protection Corrosion
IP67 (immersion up to 1 m); IEC 60068-2-11 salt mist corrosion resistance

Certifications

Safety
CB Scheme, IEC/EN 62368-1
Vehicle
E-Mark, SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (R2100 FIPS models only)
Shock Vibration
MIL-STD-810G Sec. 2.2.2, Procedures 1 and 5
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
24x7 support for the full subscription term
Warranty
Limited lifetime warranty with an active NetCloud plan
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive
5G Status
5G embedded
Throughput
900 Mbps (firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual connectivity: 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

Does the R2105 need external antennas?

No. It has four internal cellular antennas, and passive GNSS shares those antennas. You mount the unit on the vehicle roof or on a cabinet, with no coax cable runs.

How is it powered?

You can use 9–36 VDC through its 380 mm DC cable with a 4-pin Molex micro-fit connector and ignition sensing, or power it over Ethernet as an 802.3at Class 4 device (30 W). An AC power supply and SIM card are not included.

Can it add 5G to an existing Cradlepoint router?

Yes. With supported Cradlepoint controlling routers, the R2105 can act as a captive modem. NetCloud Manager treats it as an internal modem, so both are managed as one device without a separate license.

Is the Wi-Fi usable worldwide?

The R2105 supports dual-band Wi-Fi 6 with Global Optimized Wi-Fi. In the European Union, 5 GHz Wi-Fi is limited to client mode.
