Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Rugged Exterior-Mount Router with Wi-Fi 6, TAA, 1-Year NetCloud Essentials + Advanced

5GMPN TAA-MBA1-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$2,599.99

In stockShips from the US

Included subscription · 1 year
1 year3 years−$47.375 years+$401
Compliance · TAA compliant
Standard−$203.86TAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

The Cradlepoint R2105 (TAA-MBA1-2105-5GB-GA) is a 5G router that mounts on a vehicle roof or IoT enclosure. It combines the modem, antennas and Wi-Fi 6 router in one IP67, IK09 polycarbonate housing. This TAA-compliant U.S. Federal Government SKU includes a 1-year Ericsson NetCloud Mobile Performance Essentials + Advanced plan. It has a 5G NR and Cat 20 LTE modem with 4x4 MIMO, dual 4FF SIM slots, a 2.5 GbE port and passive GNSS. It can be powered by 802.3at PoE or 9–36 VDC. A SIM and an AC power supply are not included.

  • All-in-one exterior-mount design integrating the 5G modem, 4 internal cellular antennas and Wi-Fi 6 router
  • Embedded 5G FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO, dual 4FF SIM slots, up to 4.14 Gbps down / 660 Mbps up
  • Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS and 1 x 2.5 GbE LAN port
  • Powered by 802.3at PoE (30 W) or 9–36 VDC with ignition sensing
  • IP67, IK09, salt-mist corrosion resistance, MIL-STD-810G, E-Mark and SAE J1455 Category 2
  • Deploys as a standalone router or as a captive 5G modem for supported Cradlepoint routers
  • TAA-compliant SKU with a 1-year NetCloud Mobile Performance Essentials + Advanced plan
  • Simplifies installation because the antennas are built in, removing coax runs and cable signal loss

The Ericsson Cradlepoint R2105 is the Wi-Fi 6 model in the R2100 series of 5G ruggedized routers. It is built for vehicle and IoT deployments. The modem, four internal cellular antennas and the router sit in a single aerodynamic housing that mounts on a vehicle roof or an IoT cabinet enclosure. Because the antennas are integrated, there are no coax cable runs or cable signal loss. Mass transit, public safety and field organizations can install it with one power cable or with Power over Ethernet. This SKU (TAA-MBA1-2105-5GB-GA) is the TAA-compliant U.S. Federal Government ordering option. It includes a 1-year NetCloud Mobile Performance Essentials + Advanced plan. It comes with integrated antennas, while the 4FF SIM and AC power supply are not included.

The embedded modem supports 5G FR1 in NSA and SA modes and LTE Advanced Pro Category 20. It has 4x4 MIMO, dual SIM slots and peak rates of up to 4.14 Gbps downlink and 660 Mbps uplink. It is FirstNet Trusted, Verizon Frontline Verified and T-Mobile Connecting Heroes certified, and it supports CBRS Band 48 private networks. The R2105 can serve as a standalone router with 2x2 MU-MIMO Wi-Fi 6 and a 2.5 GbE LAN port. It can also run as a captive 5G modem for a supported Cradlepoint controlling router, where NetCloud Manager treats it as an internal modem that needs no separate license.

The housing is rated IP67 for immersion up to 1 meter and IK09 for impact. It resists salt-mist corrosion, carries MIL-STD-810G shock and vibration certification, and operates from -30 °C to 70 °C with ignition sensing. The Essentials package includes NetCloud Manager management, software updates, 24x7 support and a limited lifetime warranty for the term. The Advanced plan uses GNSS and cellular health data to map vehicle locations and cellular coverage.

Ideal for

  • Roof-mounted 5G for police, fire and EMS vehicles on public safety networks
  • Mass transit buses needing exterior-mounted cellular and Wi-Fi 6
  • Adding 5G to an existing Cradlepoint in-vehicle router as a captive modem
  • Outdoor IoT cabinets and enclosures powered over PoE
  • Federal fleets and agencies requiring TAA-compliant procurement

Specifications

Power

Features
Ignition sensing (auto ON, time-delay OFF)
Required
9–36 VDC (380 mm non-removable cable, 4-pin 2x2 Molex micro-fit; 3 A fuse 9–24 VDC, 2.5 A fuse >24 VDC) or 802.3at PSE Type 2 (30 W)
PoE Class
802.3at Class 4 PD (30 W)
Consumption R2105
Sleep 50 mW; Idle 8 W; Typical 14.5 W; Heavy 17 W
Consumption R2155
R2155 (series reference): Sleep 50 mW; Idle 6 W; Typical 10 W; Heavy 11.5 W

General

MPN
TAA-MBA1-2105-5GB-GA
UPC
840292705081
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2105 (R2100 series, with Wi-Fi)
FIPS Model
Non-FIPS model
Package Plan
1-Year NetCloud Mobile Performance Essentials + Advanced Plans
Region Market
United States Federal Government
TAA Compliant
TAA-compliant SKU
Shipping Weight
5.03 lb shipping weight
Subscription Term
1 year
Hardware Configuration
R2105 5G router with Wi-Fi; integrated antennas; SIM and AC power supply not included

Physical

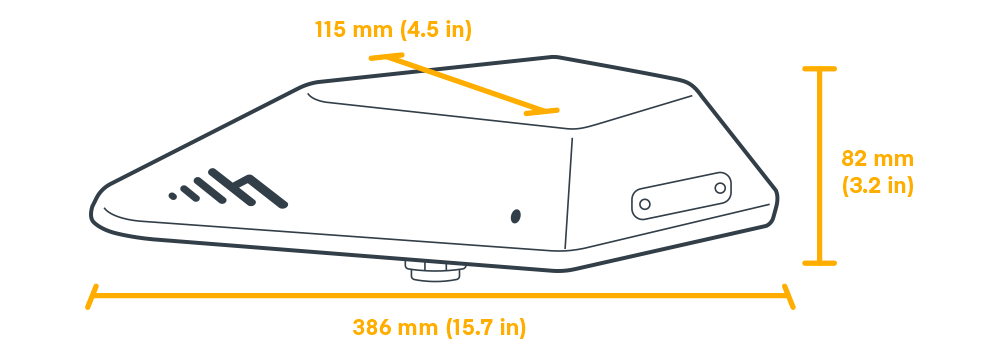

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR; 5 GHz in EU limited to client mode
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded flat CAT5e cable
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Wi-Fi Power

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
900 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
300 Mbps
Ips Application Aware Client Analytics
650 Mbps

Reliability

L2 L3 Vlans
Up to 64
Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G 2.2.2 Procedure 1 (Shock, Vibration); Procedure 5 (Shock)

Environmental

Humidity
Operating 5%–95%; Storage 5%–95%
Temperature
Operating -30 °C to 70 °C (-22 °F to 158 °F); Storage -40 °C to 85 °C (-40 °F to 185 °F)
Impact Protection
IK09 (protected against 10 joules impact)
Ingress Protection Corrosion
IP67 (dust tight, immersion up to 1 m); IEC60068-2-11 salt-mist corrosion resistance

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 x internal cellular antennas
GNSS GPS
Passive GNSS
TX Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only) — typical conducted
LTE Bands
FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Modulation
DL up to 256 QAM; UL up to 256 QAM (on particular carrier equipment)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Carrier Aggregation
LTE: DL up to 7 CA, UL up to 2 CA; LTE + 5G NR ENDC: DL 1 CA, UL 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T; T-Mobile; Verizon

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 module in process (R2100 FIPS models only)
Shock Vibration
MIL-STD-810G 2.2.2 Procedure 1 (Shock, Vibration); Procedure 5 (Shock)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Included for the full subscription term
Warranty
Limited lifetime warranty with an active NetCloud Service plan
Service Plans
NetCloud Service for Mobile Performance; NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

What comes in the TAA-MBA1-2105-5GB-GA bundle?

The R2105 5G router with Wi-Fi and integrated antennas, plus a 1-year NetCloud Mobile Performance Essentials + Advanced plan. A 4FF SIM is optional and not included, and there is no AC power supply.

How is the R2105 powered?

It runs either on 9–36 VDC through its 380 mm non-removable DC cable with a 4-pin Molex micro-fit connector and an in-line fuse, or on 802.3at PoE (30 W). Ignition sensing turns it on automatically and powers it down after a delay.

Can the R2105 work with my existing Cradlepoint router?

Yes. With supported Cradlepoint controlling routers, the R2105 can run as a captive 5G modem. NetCloud Manager treats it as an internal modem, so no separate license is needed, and on select routers it can also add Wi-Fi coverage.

How rugged is the R2105?

It is rated IP67 (dust tight and immersion up to 1 meter) and IK09 for impact. It is salt-mist corrosion resistant, MIL-STD-810G shock and vibration certified, and rated for operation from -30 °C to 70 °C.

Does the R2105 support public safety networks?

Yes. The modem is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified, and it also supports CBRS Band 48 private cellular networks.
