Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Ruggedized Router with Wi-Fi 6 and 5-Year NetCloud Ruggedized IoT Essentials + Advanced (TAA)

5GMPN TAA-TCA5-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$3,091.97$3,379.00Save $287.03

In stockShips from the US

Included subscription · 5 years
1 year−$4013 years−$448.375 years
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

The Cradlepoint R2105 combines an embedded 5G NR and Cat 20 LTE modem, four internal cellular antennas, passive GNSS and a Wi-Fi 6 router in one IP67, IK09 housing. It is built for exterior mounting on vehicles and IoT cabinets. This TAA-compliant part number for U.S. federal government ordering bundles a 5-year NetCloud Ruggedized IoT Essentials + Advanced subscription. It runs on 9–36 VDC or 802.3at PoE. A SIM card and AC power supply are not included.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Category 20 modem with 4x4 MIMO and peak rates up to 4.14 Gbps down / 660 Mbps up
  • Modem, four internal cellular antennas and router integrated in one exterior-mount housing, with no coax cables required
  • Dual-band, dual-radio 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with DFS and a 2.5 GbE RJ45 LAN port
  • IP67, IK09, MIL-STD-810G shock and vibration, E-Mark and SAE J1455 Category 2; -30 °C to 70 °C operation
  • Powered by 9–36 VDC with ignition sensing or by 802.3at PoE (30 W)
  • FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified; CBRS Band 48 support
  • TAA-compliant SKU with a 5-year NetCloud Ruggedized IoT Essentials + Advanced subscription
  • One-cable installation on vehicle roofs or IoT cabinets: power and data over PoE, or a DC cable with ignition sensing

The Cradlepoint R2105 is the Wi-Fi-equipped model of the Ericsson Cradlepoint R2100 Series, a 5G ruggedized router designed for vehicle and IoT deployments. It combines an embedded 5G NR FR1 and LTE Category 20 modem, four internal cellular antennas, passive GNSS and a dual-band 2x2 MU-MIMO Wi-Fi 6 router in one aerodynamic polycarbonate housing. The housing mounts on a vehicle roof or an IoT cabinet enclosure. Because the antennas are integrated, there are no coax cable runs to route.

The housing is rated IP67 for dust and water immersion to 1 meter and IK09 for impact. It has been tested to MIL-STD-810G shock and vibration procedures and carries E-Mark and SAE J1455 Category 2 vehicle certifications. It operates from -30 °C to 70 °C. You can power it from 9–36 VDC with ignition sensing or from an 802.3at PoE source, and data runs over the 2.5 GbE LAN port. The R2105 works as a self-contained router. It can also act as a captive 5G modem for a supported Cradlepoint controlling router. In that mode, NetCloud Manager treats it as an internal modem, so no separate licence is required.

The modem supports 5G NSA and SA with 4x4 MIMO and peak rates up to 4.14 Gbps downlink and 660 Mbps uplink. It has dual 4FF SIM slots and CBRS Band 48 for private cellular networks. Public safety certifications include FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified.

This TAA-compliant part number (TAA-TCA5-2105-5GB-GA) is the U.S. federal government ordering option. It bundles five years of NetCloud Ruggedized IoT Essentials plus the NetCloud Advanced plan. Coverage includes cloud management and software updates through NetCloud Manager, 24x7 support and a limited lifetime warranty while the subscription is active. A SIM card and AC power supply are not included.

Ideal for

  • Roof-mounted 5G connectivity and onboard Wi-Fi for mass transit and public safety vehicles
  • Federal agency fleet and field deployments that require TAA-compliant hardware
  • IoT cabinet and outdoor enclosure connectivity where integrated antennas simplify installation
  • Adding 5G to an existing Cradlepoint in-vehicle router as a captive modem over a single PoE cable
  • Automatic Vehicle Location and cellular coverage mapping using GNSS and signal data

Specifications

Power

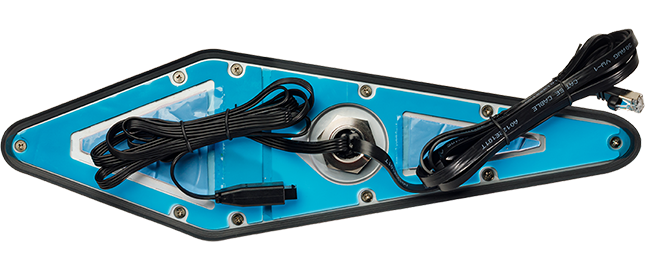

DC Cable
380 mm non-removable DC cable, 4-pin 2x2 Molex micro-fit
DC Input
9–36 VDC
Features
Ignition sensing (automatic ON & time-delay OFF)
PoE Class
802.3at Class 4 PD (30 W)
PoE Input
Alternative power: 802.3at PSE Type 2 (30 W)
Fuse 9 24 Vdc
9–24 VDC installations: 3 A fuse
Consumption Idle
R2105 idle: 8 W
Fuse Over 24 Vdc
> 24 VDC installations: 2.5 A fuse
Consumption Heavy
R2105 heavy: 17 W
Consumption Sleep
R2105 sleep: 50 mW
Consumption Typical
R2105 typical: 14.5 W

General

MPN
TAA-TCA5-2105-5GB-GA
UPC
840292703353
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
R2105 (R2100 Series)
Market
U.S. Federal Government ordering option (TAA-compliant)
Manufacturer
Ericsson Enterprise Wireless (Ericsson Cradlepoint)
TAA Compliant
TAA compliant
Product Status
Manufacturer status: Active
Hardware Configuration
R2105 5G router with Wi-Fi; integrated antennas; SIM and AC power supply not included

Package

SIM Card
4FF SIM card not included
AC Power Supply
AC power supply not included
Shipping Weight
5.03 lbs

Physical

Weight
1.46 kg (3 lb 4 oz)

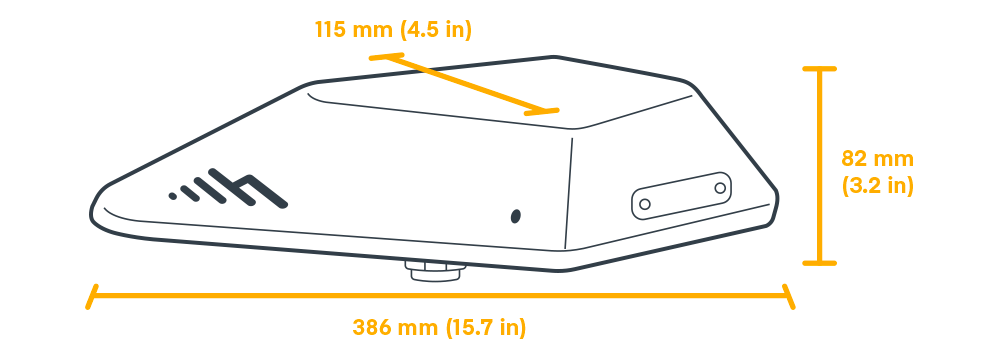

Dimensions
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)

Interfaces

Wi-Fi
Wi-Fi 6 2x2 MU-MIMO, 2.4/5 GHz concurrent, DFS; EU 5 GHz limited to client mode
Modem
Embedded 5G NR FR1 low-/mid-band + 4G LTE Cat 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm non-removable shielded CAT5e flat cable
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Wi-Fi Power

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Performance

Vlans
Up to 64
Ipsec VPN
300 Mbps
Stateful Firewall
900 Mbps
Concurrent Sessions
32,000
Typical Client Count
100
Concurrent VPN Tunnels
10
Ips App Aware Client Analytics
IPS / Application Aware Services / Client Analytics: 650 Mbps

Reliability

MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Vlans
Up to 64
Shock Vibration
MIL-STD-810G Sec. 2.2.2, Proc. 1 (Shock, Vibration) and Proc. 5 (Shock)

Subscription

Plan
NetCloud Ruggedized IoT Essentials + Advanced Plans
Term
5-year subscription term
Training
Access to Enterprise Wireless University
Essentials Support
24x7 support (phone 24-hour weekdays + weekend emergency, web 24x7, chat 24x5)

Environmental

Corrosion
IEC60068-2-11 corrosion resistance (salt mist)
Storage Humidity
5% to 95%
Impact Protection
IK09 (protected against 10 joules impact)
Ingress Protection
IP67 (dust tight and water immersion up to 1 meter)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 x internal cellular antennas
GNSS GPS
Passive GNSS
LTE Bands
LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
Up to 256 QAM downlink and uplink (carrier dependent)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC; IC; CE; RCM
Technology
5G FR1 NSA/SA + LTE Cat 20; dual 4FF SIM; 3GPP Rel. 15
5G NR Bands
5G NR (NSA/SA): n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Transmit Power
5G NR 23 ± 1.5 dBm; ENDC 20 ± 1 dBm; LTE 23 ± 1 dBm; LTE HPUE 25 ± 1 dBm (B41 SA only)
Carrier Aggregation
LTE: DL 7 CA / UL 2 CA; ENDC: DL 1 CA / UL 1 CA
Gcf Global Operators
GCF global operators list
Private Cellular Network
Yes, incl. CBRS Band 48 (FCC Part 96)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline Verified
Ptcrb North America Operators
PTCRB North America operators list
Network Operator Certifications
AT&T; T-Mobile; Verizon

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (R2100 FIPS models only)
Shock Vibration
MIL-STD-810G Sec. 2.2.2, Proc. 1 and Proc. 5
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (container memory adjustable)
Applications
Docker containerized applications
Flash Storage
Up to 8 GB flash

Product Summary

PoE
802.3at
Wi-Fi
Wi-Fi 6, dual-band concurrent, 2x2 MU-MIMO with DFS
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate housing
VPN Tunnels
10 VPN tunnels
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

What is included with part number TAA-TCA5-2105-5GB-GA?

It includes the Cradlepoint R2105 5G router with Wi-Fi and integrated antennas, plus a 5-year NetCloud Ruggedized IoT Essentials + Advanced subscription. A 4FF SIM card and AC power supply are not included.

How is the R2105 powered?

It accepts 9–36 VDC through a non-removable DC cable with a 4-pin Molex micro-fit connector, which supports ignition sensing. Alternatively, it can be powered from an 802.3at PoE (30 W) source over its 2.5 GbE Ethernet cable. Use a 3 A fuse for 9–24 VDC installations and a 2.5 A fuse above 24 VDC.

Can the R2105 add 5G to a router I already have?

Yes. With supported Cradlepoint controlling routers, the R2105 can run as a captive modem. NetCloud Manager then treats it as an internal modem, so both devices are managed as one and no separate licence is needed.

Is this unit suitable for outdoor and vehicle mounting?

Yes. It is rated IP67 and IK09 and tested to MIL-STD-810G shock and vibration. It carries E-Mark and SAE J1455 Category 2 vehicle certifications and operates from -30 °C to 70 °C.

Does it support public safety networks?

Yes. The modem is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. It also supports private cellular networks, including CBRS Band 48.
