Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Ruggedized Router with Wi-Fi 6 and 5-Year TAA NetCloud Mobile Performance Essentials Plan

5GMPN TAA-MB05-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$3,092.88$3,379.99Save $287.11

In stockShips from the US

Included subscription · 5 years
1 year−$4013 years−$448.375 years
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

The Cradlepoint R2105 is an exterior-mounted 5G ruggedized router for vehicles and IoT enclosures. It combines an embedded 5G NR FR1 and LTE Category 20 modem, four internal cellular antennas and dual-band Wi-Fi 6 in one IP67, IK09-rated housing. This TAA-compliant SKU (TAA-MB05-2105-5GB-GA) is the U.S. Federal Government ordering option. It bundles the hardware with a 5-year Ericsson NetCloud Mobile Performance Essentials plan covering cloud management, software updates, 24x7 support and a limited lifetime warranty. It ships without an AC power supply or SIM.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Category 20 modem with 4x4 MIMO, dual 4FF SIM slots and four internal cellular antennas
  • Dual-radio, dual-band 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS and one 2.5 GbE RJ45 LAN port
  • Exterior roof or cabinet mounting in an IP67, IK09, MIL-STD-810G-rated housing with E-Mark and SAE J1455 vehicle certification
  • Power from 9–36 VDC with ignition sensing or from 802.3at PoE (30 W)
  • FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified, plus CBRS Band 48 private cellular support
  • Deploys as a standalone router or as a captive 5G modem for supported Cradlepoint controlling routers
  • TAA-compliant SKU with a 5-year NetCloud Mobile Performance Essentials plan including management, updates, 24x7 support and a limited lifetime warranty
  • Simplifies vehicle installs: modem, antennas and router come in one roof-mounted unit with no coax cable runs.

The Ericsson Cradlepoint R2105 is a 5G ruggedized router built to mount on the roof of a vehicle or attach to an IoT cabinet. The modem, antennas and Wi-Fi 6 router sit in one aerodynamic polycarbonate housing, so there are no coax runs. You connect a single DC power cable with ignition sensing, or power it over Ethernet with 802.3at PoE. This part number is the TAA-compliant configuration for U.S. Federal Government procurement. It pairs the R2105 with a 5-year NetCloud Mobile Performance Essentials subscription.

The embedded 5G FR1 NSA/SA modem supports LTE Advanced Pro Category 20, 4x4 MIMO and dual 4FF SIM slots. It is rated for peak rates up to 4.14 Gbps down and 660 Mbps up. On the network side, the R2105 delivers 900 Mbps stateful firewall throughput, 300 Mbps IPsec VPN throughput and 10 concurrent VPN tunnels, with a typical load of 100 clients. It also supports FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety programs, plus CBRS Band 48 private cellular. Passive GNSS feeds Automatic Vehicle Location systems.

The R2105 can run as a self-contained router. It can also serve as a captive 5G modem for a supported Cradlepoint controlling router, where NetCloud Manager treats it as an internal modem and no separate license is needed. Its rugged build carries IP67, IK09, MIL-STD-810G shock and vibration, E-Mark and SAE J1455 ratings. A quad-core ARMv8 processor runs Docker containerized applications at the edge.

The Essentials plan includes NetCloud Manager device management and software updates for the full 5-year term. Support runs 24x7 on the web, 24x5 by chat and 24 hours on weekdays by phone, with weekend emergency response. The plan also covers a limited lifetime warranty while the subscription is active and access to Enterprise Wireless University. NetCloud Advanced can be added at any time for features such as coverage mapping.

Ideal for

  • Roof-mounted 5G connectivity for police, fire and EMS vehicles on FirstNet Trusted and other public safety networks
  • Mass transit buses and fleet vehicles needing onboard Wi-Fi 6 and GNSS-based Automatic Vehicle Location
  • Adding 5G to an existing Cradlepoint in-vehicle router as a captive modem over a single PoE Ethernet cable
  • Outdoor IoT cabinets and enclosures exposed to dust, water immersion, salt mist and wide temperature swings
  • U.S. Federal Government deployments that require TAA-compliant networking equipment

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 x internal cellular antennas
GNSS GPS
Passive GNSS
Modulation
5G FR1: DL up to 256 QAM; UL up to 256 QAM (enabled only on particular carrier equipment)
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps
TX Power LTE
LTE bands: 23 dBm ± 1 (typical conducted)
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
Up to 4.14 Gbps
TX Power Endc
LTE + 5G NR ENDC: 20 dBm ± 1 (typical conducted)
TX Power 5G NR
5G NR bands: 23 dBm ± 1.5 (typical conducted)
TX Power LTE Hpue
25 dBm ± 1 (B41 standalone mode only)
Carrier Aggregation LTE
LTE only: DL up to 7 CA; UL up to 2 CA
Carrier Aggregation Endc
LTE + 5G NR ENDC: DL 1 CA; UL 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T; T-Mobile; Verizon

Power

Features
Ignition sensing (automatic ON & time-delay OFF)
PoE Class
802.3at Class 4 PD (30 W)
PoE Input
Alternative: 802.3at PSE Type 2 (30 W)
Fuse 9 24 Vdc
3 A fuse for 9–24 VDC installations
DC Input Cable
380 mm (14.96 in) non-removable cable, 4-pin 2x2 Molex Micro-Fit connector
Consumption Idle
8 W (R2105)
DC Input Voltage
9–36 VDC steady state
Consumption Heavy
17 W (R2105)
Consumption Sleep
50 mW (R2105)
Fuse Above 24 Vdc
2.5 A fuse for >24 VDC installations
Consumption Typical
14.5 W (R2105)

General

MPN
TAA-MB05-2105-5GB-GA
UPC
840292703315
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2105 (R2100 Series)
Region
United States: Federal Government
FIPS Model
Non-FIPS model
Package Plan
5-Year NetCloud Mobile Performance Essentials Plan
TAA Compliant
TAA-compliant SKU
Product Status
Active
Shipping Weight
5.03 lb
Subscription Term
5 years
Hardware Configuration
R2105 5G router with Wi-Fi; integrated antennas; SIM and AC power supply not included

Physical

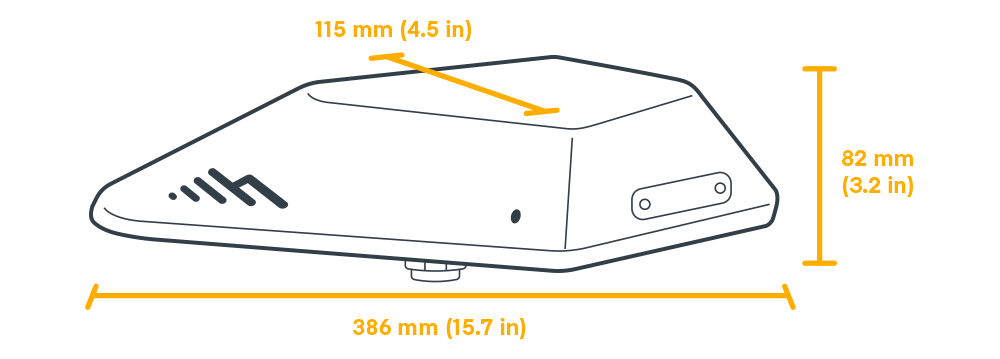

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
Dual-band concurrent (2.4/5 GHz) 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR; EU 5 GHz limited to client mode
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Category 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded CAT5e flat cable
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Performance

Stateful Firewall
900 Mbps
Concurrent Sessions
32,000 (TPC)
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
10
Point TO Point Ipsec VPN
300 Mbps
Ips App Aware Client Analytics
650 Mbps (IPS/Application Aware Services/Client Analytics)

Reliability

Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G Sec. 2.2.2 Procedure 1 (Shock, Vibration) and Procedure 5 (Shock)
Layer2 Layer3 Vlans
Up to 64

Environmental

Storage Humidity
5% to 95%
Impact Protection
IK09 (protected against 10 joules impact)
Ingress Protection
IP67 (dust tight and water immersion up to 1 meter)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Corrosion Resistance
IEC60068-2-11 corrosion resistance (salt mist)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 module in process (R2100 FIPS models only; this SKU is a non-FIPS model)
Shock Vibration
MIL-STD-810G Sec. 2.2.2 Procedure 1 (Shock, Vibration) and Procedure 5 (Shock)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Ericsson NetCloud Service packages include support for the full subscription term
Warranty
Limited lifetime warranty for as long as an active Ericsson NetCloud Service plan is licensed
Service Plans
NetCloud Service for Mobile Performance; NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Via Ericsson NetCloud Manager for the full subscription term
Device Management
Ericsson NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (adjustable for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 8 GB (adjustable for NetCloud Container Orchestrator)

Product Summary

PoE
802.3at
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)
Subscription Terms Available
1, 3 & 5 years

R2105 Wi-Fi Power

Fcc
2.4 GHz: 30.9; 5250–5350 MHz: 29.4; 5470–5725 MHz: 29.5; 5725–5850 MHz: 34.3 dBm EIRP
Canada
2.4 GHz: 30.9; 5470–5725 MHz: 29.5; 5725–5850 MHz: 34.3 dBm EIRP
European Union
2.4 GHz: 20.0; 5470–5725 MHz: 22.7 dBm EIRP
Global Safe Mode
2.4 GHz: 20.0 dBm EIRP

Questions buyers ask

What is included with TAA-MB05-2105-5GB-GA?

It includes the Cradlepoint R2105 5G ruggedized router with Wi-Fi and integrated antennas, plus a 5-year Ericsson NetCloud Mobile Performance Essentials plan. A SIM card and AC power supply are not included.

How is the R2105 powered?

It accepts 9–36 VDC through a 380 mm non-removable cable with a 4-pin Molex Micro-Fit connector. Ignition sensing provides automatic on and time-delay off. It can also be powered by 802.3at PoE (30 W) over its Ethernet connection.

What does the NetCloud Mobile Performance Essentials plan cover?

It provides NetCloud Manager cloud management and software updates for the full 5-year term. Support runs 24x7 on the web, 24x5 by chat and 24 hours on weekdays by phone, with weekend emergency response. The plan also includes access to Enterprise Wireless University and a limited lifetime warranty while the subscription is active. NetCloud Advanced can be added later for features such as coverage mapping.

Can the R2105 add 5G to a router I already have?

Yes. With supported Cradlepoint controlling routers, the R2105 can run as a captive modem. NetCloud Manager then treats it as an internal modem, so no separate license is needed, and on select routers it can also add Wi-Fi coverage.

Is this model suitable for public safety networks?

Yes. The modem is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. It also carries AT&T, T-Mobile and Verizon network operator certifications and supports CBRS Band 48 private cellular networks.
