Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Ruggedized Vehicle Router with Wi-Fi 6 and 5-Year TAA NetCloud Essentials + Advanced

5GMPN TAA-MBA5-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$4,007.94$4,379.99Save $372.05

In stockShips from the US

Included subscription · 5 years
1 year−$4013 years−$448.375 years
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

The Cradlepoint R2105 (TAA-MBA5-2105-5GB-GA) is an exterior-mounted 5G ruggedized router for vehicles and IoT enclosures, bundled with a 5-year NetCloud Mobile Performance Essentials + Advanced plan. It integrates a 5G NR FR1 and Cat 20 LTE modem, four internal cellular antennas, passive GNSS and 2x2 Wi-Fi 6 in one IP67, IK09 housing. It is powered by 9–36 VDC or 802.3at PoE and needs no coax runs. This TAA-compliant SKU is configured for U.S. Federal Government ordering.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with dual 4FF SIM slots, 4x4 MIMO and up to 4.14 Gbps peak downlink
  • Integrated modem, four internal cellular antennas and router in one exterior-mount housing, with no coax cables
  • Dual-radio, dual-band 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS and 1 x 2.5 GbE RJ45 LAN port
  • Powered by 9–36 VDC with ignition sensing or by 802.3at PoE
  • IP67, IK09, MIL-STD-810G shock/vibration and -30 °C to 70 °C operating range
  • Passive GNSS for Automatic Vehicle Location integration and NetCloud coverage mapping
  • 5-year NetCloud Mobile Performance Essentials + Advanced plan in a TAA-compliant U.S. Federal Government SKU
  • Simplifies vehicle installs because the modem, antennas and router share one roof-mounted unit, removing antenna cable runs and the signal loss they cause

The Ericsson Cradlepoint R2105 is a 5G ruggedized router designed for mass transit, public safety and IoT deployments. It mounts on a vehicle roof or an IoT cabinet enclosure and houses the modem, antennas and router in one aerodynamic polycarbonate casing. The embedded 5G NR FR1 NSA/SA and LTE Advanced Pro Category 20 modem supports dual 4FF SIM slots, 4x4 MIMO and peak rates of up to 4.14 Gbps downlink and 660 Mbps uplink. The modem carries AT&T, T-Mobile and Verizon certifications, along with FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications. It also supports CBRS Band 48 for private cellular networks.

You can deploy the R2105 as a self-contained router with dual-band, dual-radio 2x2 MU-MIMO Wi-Fi 6 and a 2.5 GbE LAN port. It can also serve as a captive 5G modem for supported Cradlepoint controlling routers. In captive mode, NetCloud Manager treats the R2105 as an internal modem, so it does not need a separate license. Power comes from a 9–36 VDC input with ignition sensing or from 802.3at PoE over a single Ethernet run.

The housing is rated IP67 and IK09 and meets MIL-STD-810G shock and vibration procedures. It also resists salt-mist corrosion and operates from -30 °C to 70 °C. A quad-core ARMv8 processor runs Docker containerized applications at the edge.

This SKU includes 5 years of NetCloud Mobile Performance Essentials plus the Advanced plan. Coverage includes NetCloud Manager, software and firmware updates, 24x7 support and Enterprise Wireless University access. Hardware carries a limited lifetime warranty for as long as an active NetCloud subscription is maintained. The Advanced plan adds GNSS-based location history and cellular coverage mapping. The router ships without an AC power supply or SIM card.

Ideal for

  • Roof-mounted 5G connectivity for police, fire and EMS vehicles on public safety networks
  • Onboard Wi-Fi and backhaul for buses and mass transit fleets
  • Adding 5G to an existing in-vehicle Cradlepoint router as a captive modem
  • Connecting IoT cabinets and outdoor enclosures, including private CBRS networks
  • Federal agency fleet deployments that require TAA-compliant hardware

Specifications

Power

Features
Ignition sensing (automatic ON & time-delay OFF)
Required
9–36 VDC (Molex micro-fit cable, fused) or 802.3at PSE Type 2 (30 W)
Consumption PoE
802.3at Class 4 PD (30 W)
Consumption R2105
Sleep 50 mW; Idle 8 W; Typical 14.5 W; Heavy 17 W

General

MPN
TAA-MBA5-2105-5GB-GA
UPC
840292702493
Plan
5-Year NetCloud Mobile Performance Essentials + Advanced Plans
Brand
Ericsson Cradlepoint
Model
Cradlepoint R2105 (R2100 Series)
Region
United States: Federal Government
TAA Compliant
TAA compliant
Subscription Term
5 years
Hardware Configuration
R2105 5G router with Wi-Fi; SIM not included; integrated antennas; no AC power supply

Package

SIM Card
4FF SIM not included
AC Power Supply
No AC power supply
Shipping Weight
5.03 lb

Physical

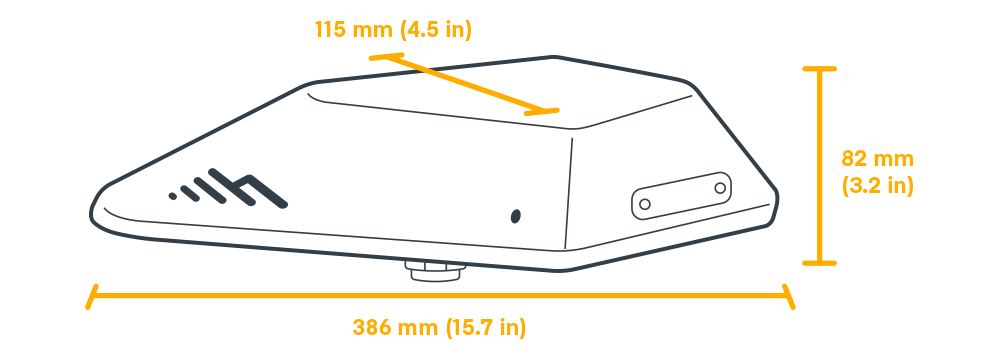

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
Concurrent 2.4/5 GHz 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR; EU 5 GHz limited to client mode
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm non-removable shielded CAT5e flat cable with male RJ45
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Performance

Stateful Firewall
900 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Sessions Tcp
32,000
Point TO Point Ipsec VPN
300 Mbps
Ips App Aware Client Analytics
650 Mbps

Reliability

Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Layer2 Layer3 Vlans
Up to 64
Shock Vibration Humidity
MIL-STD-810G 2.2.2 Procedure 1 (Shock, Vibration) and Procedure 5 (Shock)

Environmental

Humidity
5% to 95% operating and storage
Temperature
Operating -30 °C to 70 °C; Storage -40 °C to 85 °C
Impact Protection
IK09 (10 joules impact)
Ingress Protection Corrosion
IP67; IEC60068-2-11 salt mist corrosion resistance

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
SMS supported
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 internal cellular antennas
GNSS GPS
Passive GNSS
LTE Bands
FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48
Modulation
Up to 256 QAM downlink and uplink (on particular carrier equipment)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE-A Pro Cat 20; dual 4FF SIM; 3GPP Rel. 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Transmit Power
5G NR 23 dBm ±1.5; ENDC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41 SA only)
Carrier Aggregation
LTE DL 7CA / UL 2CA; LTE + 5G NR ENDC DL 1CA / UL 1CA
Gcf Global Operators
GCF member operator list
Private Cellular Network
Yes, including CBRS Band 48 (FCC Part 96)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Ptcrb North America Operators
PTCRB North America operator list
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline Verified

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (R2100 FIPS models only)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity
MIL-STD-810G 2.2.2 Procedures 1 and 5

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
Dual-radio, dual-band 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)
Subscription Terms Available
1, 3 & 5 years

Wi-Fi Power R2105

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Questions buyers ask

What is included with TAA-MBA5-2105-5GB-GA?

You get the R2105 5G router with Wi-Fi and integrated antennas, plus 5 years of NetCloud Mobile Performance Essentials and the Advanced plan. A SIM card and an AC power supply are not included.

How is the R2105 powered?

The R2105 runs from a 9–36 VDC input through its non-removable cable with a 4-pin Molex micro-fit connector and supports ignition sensing. It can also be powered by 802.3at PoE (Type 2, 30 W) over Ethernet.

Can the R2105 add 5G to a router I already have?

Yes. With supported Cradlepoint controlling routers, the R2105 can run as a captive modem. NetCloud Manager treats it as an internal modem, so no separate license is needed. On select routers it can also act as an additional Wi-Fi source.

Which public safety networks does the R2105 support?

The modem is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. It also carries AT&T, T-Mobile and Verizon network operator certifications.

What does the NetCloud subscription cover?

The plan covers the full 5-year term. It includes NetCloud Manager, software and firmware updates, 24x7 support and Enterprise Wireless University access. Hardware carries a limited lifetime warranty while an active NetCloud plan is maintained. The Advanced plan adds features such as GNSS-based vehicle location history and cellular coverage maps.
