Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Ruggedized Vehicle Router with Wi-Fi 6 and 3-Year NetCloud Ruggedized IoT Essentials (TAA)

5GMPN TAA-TC03-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$2,352.62$2,571.00Save $218.38

In stockShips from the US

Included subscription · 3 years
1 year+$47.373 years5 years+$448.37
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

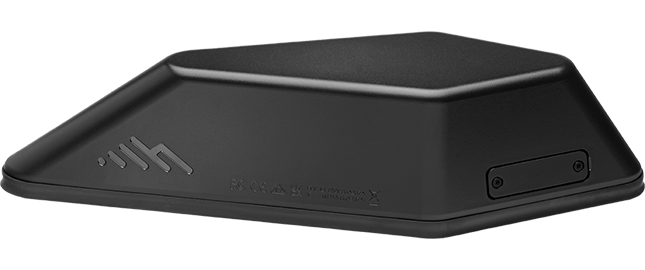

The Cradlepoint R2105 is an exterior-mounted 5G ruggedized router for vehicles and IoT enclosures. It combines an embedded 5G NR FR1 and Cat 20 LTE modem, four internal cellular antennas, passive GNSS and dual-band Wi-Fi 6 in one IP67, IK09 polycarbonate housing. This TAA-compliant U.S. Federal Government SKU bundles the router with a 3-year NetCloud Ruggedized IoT Essentials plan covering cloud management, software updates and 24x7 support. It runs on 9–36 VDC with ignition sensing or on 802.3at PoE. A SIM and AC power supply are not included.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO and dual 4FF SIM slots
  • Integrated modem, four internal cellular antennas and router in one exterior-mount housing, with no coax cables
  • Dual-band, concurrent 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
  • IP67, IK09, MIL-STD-810G shock/vibration and -30 °C to 70 °C operating range
  • 9–36 VDC power with ignition sensing, or 802.3at PoE
  • Runs as a standalone router or as a captive 5G modem for supported Cradlepoint routers
  • TAA-compliant SKU with a 3-year NetCloud Ruggedized IoT Essentials plan
  • Roof or enclosure mounting places the antennas outside the vehicle or cabinet, so there are no coax runs or cable losses to manage

The Ericsson Cradlepoint R2105 is the Wi-Fi-equipped model in the R2100 series, a 5G ruggedized router built to mount on a vehicle roof or attach to an IoT cabinet enclosure. It targets mass transit, public safety and other organizations that need current cellular performance without coax runs. The modem, antennas and router share one aerodynamic IP67 housing rated IK09 for impact, MIL-STD-810G for shock and vibration, and -30 °C to 70 °C for operation.

The embedded 5G NR FR1 modem supports NSA and SA networks with LTE Advanced Pro Category 20 fallback, 4x4 MIMO, dual 4FF SIM slots and peak rates up to 4.14 Gbps down and 660 Mbps up. It carries AT&T, T-Mobile and Verizon certifications, FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified status, and CBRS Band 48 support for private cellular networks. Dual-band 2x2 MU-MIMO Wi-Fi 6 serves local clients, and a 2.5 GbE LAN port on a flat, non-removable cable connects wired equipment.

The R2105 can run as a self-contained 5G router or be installed as a captive modem for a supported Cradlepoint controlling router. In that role NetCloud Manager treats it as an internal modem with no separate license, and on select routers it can also add Wi-Fi coverage for tasks such as video offload. Power comes from a 9–36 VDC input with ignition sensing or from a single 802.3at PoE connection. A quad-core ARMv8 CPU with up to 1.8 GB memory and 8 GB flash runs Docker containerized applications at the edge.

This part number includes a 3-year NetCloud Ruggedized IoT Essentials plan: NetCloud Manager device management and software updates for the full term, 24x7 support, access to Enterprise Wireless University, and a limited lifetime hardware warranty while the subscription is active. NetCloud Advanced can be added at any time.

Ideal for

  • Roof-mounted 5G connectivity and onboard Wi-Fi for buses, light rail and mass transit fleets
  • Public safety and first-responder vehicles using FirstNet or carrier priority networks
  • Adding 5G to an existing Cradlepoint vehicle router as a captive modem over a single PoE cable
  • Connecting outdoor IoT cabinets and enclosures in harsh or corrosive environments
  • U.S. Federal Government deployments that require TAA-compliant hardware

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 internal cellular antennas
GNSS GPS
Passive GNSS
LTE Bands
FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48
Modulation
Up to 256 QAM downlink and uplink (on particular carrier equipment)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA, LTE-A Pro Cat 20, dual 4FF SIM, 3GPP Rel. 15
5G NR Bands
n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Transmit Power
5G NR 23 ±1.5; ENDC 20 ±1; LTE 23 ±1; LTE HPUE 25 ±1 (B41 SA) dBm
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, including CBRS Band 48 (FCC Part 96)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified

Power

Features
Ignition sensing (automatic ON & time-delay OFF)
Required
9–36 VDC (Molex micro-fit, fused) or 802.3at PoE Type 2 (30 W)
Consumption PoE
802.3at Class 4 PD (30 W)
Consumption R2105
Sleep 50 mW; Idle 8 W; Typical 14.5 W; Heavy 17 W

General

MPN
TAA-TC03-2105-5GB-GA
UPC
840292703421
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2105 (R2100 series)
Region
United States Federal Government (TAA-compliant)
Package Plan
3-Year NetCloud Ruggedized IoT Essentials Plan
TAA Compliant
TAA-compliant SKU
Subscription Term
3 years
Essentials Inclusions
Endpoint, 24x7 support, limited lifetime warranty, Enterprise Wireless University
Hardware Configuration
R2105 5G router with Wi-Fi, integrated antennas; SIM and AC power supply not included

Physical

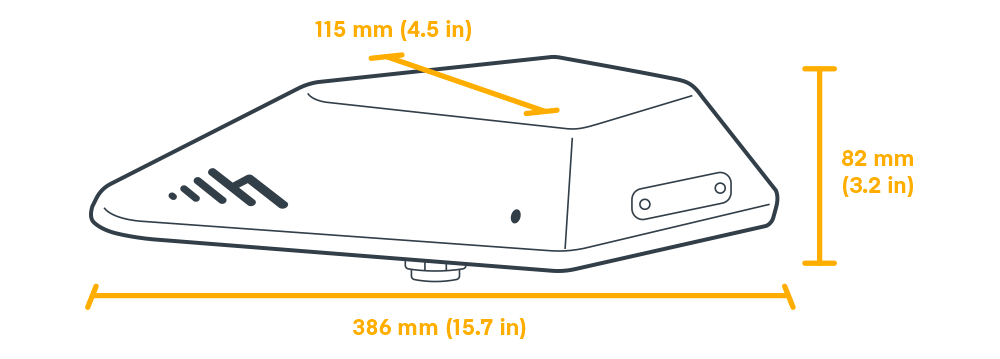

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR; EU 5 GHz limited to client mode
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded flat CAT5e cable
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Wi-Fi Power

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Performance

Stateful Firewall
900 Mbps
Concurrent Sessions
32,000
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
10
Point TO Point Ipsec VPN
300 Mbps
Ips Application Aware Client Analytics
650 Mbps

Reliability

Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Layer2 Layer3 Vlans
Up to 64
Shock Vibration Humidity
MIL-STD-810G Sec. 2.2.2 Proc. 1 (Shock, Vibration) and Proc. 5 (Shock)

Environmental

Humidity
Operating 5–95%; Storage 5–95%
Temperature
Operating -30 °C to 70 °C; Storage -40 °C to 85 °C
Impact Protection
IK09 (10 J impact)
Ingress Protection Corrosion
IP67; IEC 60068-2-11 salt-mist corrosion resistance

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (FIPS models only)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity
MIL-STD-810G Sec. 2.2.2 Proc. 1 and Proc. 5

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

Does this bundle include a SIM card or power supply?

No. The router has dual 4FF SIM slots, but a SIM is not included, and there is no AC power supply. It runs from a 9–36 VDC vehicle or site supply through its Molex micro-fit cable, or from an 802.3at PoE Type 2 (30 W) source.

Can the R2105 work with a router I already have?

Yes. Besides running as a standalone 5G router, it can serve as a captive modem for supported Cradlepoint controlling routers. NetCloud Manager then manages both as one device, and the R2105 needs no separate license in that role. On select routers it can also provide additional Wi-Fi coverage.

What does the 3-year Ruggedized IoT Essentials plan include?

It includes NetCloud Manager device management and software updates for the full term, plus 24x7 support (phone 24 hours on weekdays with weekend emergency response, web 24x7, chat 24x5). It also includes access to Enterprise Wireless University and a limited lifetime hardware warranty while the subscription stays active. NetCloud Advanced can be added at any time.

Which carriers and public safety networks is it certified for?

The modem is certified for AT&T, T-Mobile and Verizon. It is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified, and it supports private CBRS Band 48 networks.

How rugged is the R2105?

It is rated IP67 for dust and water immersion up to 1 meter and IK09 for impact. It meets MIL-STD-810G shock and vibration procedures and IEC 60068-2-11 salt-mist corrosion resistance, and it operates from -30 °C to 70 °C.
