Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Ruggedized Router with Wi-Fi 6 and 3-Year NetCloud Ruggedized IoT Essentials + Advanced (TAA)

5GMPN TAA-TCA3-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$2,643.60$2,889.00Save $245.40

In stockShips from the US

Included subscription · 3 years
1 year+$47.373 years5 years+$448.37
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

The Cradlepoint R2105 (TAA-TCA3-2105-5GB-GA) is an exterior-mounted 5G ruggedized router for vehicle and IoT deployments. It combines a 5G NR FR1 and LTE Category 20 modem, four internal cellular antennas, and dual-band Wi-Fi 6 in one IP67, IK09 polycarbonate housing. This TAA-compliant SKU is a U.S. Federal Government ordering option and includes 3-year NetCloud Ruggedized IoT Essentials and Advanced plans. You can run it as a standalone router or as a 5G captive modem for a supported Cradlepoint controlling router. The package does not include a SIM or an AC power supply.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO, dual 4FF SIM slots and up to 4.14 Gbps peak downlink
  • Integrated modem, four internal cellular antennas and dual-band 2x2 MU-MIMO Wi-Fi 6 router in one exterior-mount housing
  • IP67 and IK09 rated, with salt-mist corrosion resistance, MIL-STD-810G shock and vibration testing, and -30 °C to 70 °C operation
  • Powered by 9–36 VDC with ignition sensing or by 802.3at PoE, with no coax cables required
  • Operates as a self-contained router or as a 5G captive modem managed as one entity with supported Cradlepoint routers
  • FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified, with CBRS private cellular support
  • TAA-compliant SKU with 3-year NetCloud Ruggedized IoT Essentials + Advanced plans
  • Simplify vehicle and cabinet installs: modem, antennas and router arrive in one sealed unit, so there is no coax to route or tune

The Ericsson Cradlepoint R2105 is the Wi-Fi 6 model of the R2100 5G ruggedized router. It is built to mount on a vehicle roof or an IoT cabinet enclosure, and it integrates the modem, antennas and router in one aerodynamic housing, so no coax runs are needed. The embedded modem supports 5G NR FR1 in NSA and SA modes plus LTE Advanced Pro Category 20, with peak rates up to 4.14 Gbps downlink and 660 Mbps uplink, 4x4 MIMO, and dual 4FF SIM slots. It also supports private cellular, including CBRS Band 48. The modem is certified for FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety networks.

The R2105 is built for exterior mounting. The housing is rated IP67 and IK09, is tested for salt-mist corrosion resistance, and meets MIL-STD-810G shock and vibration requirements. It operates from -30 °C to 70 °C. Power comes from 9–36 VDC with ignition sensing or from 802.3at PoE through a single 2.5 GbE port. The router can serve up to 100 typical clients over 2x2 MU-MIMO Wi-Fi 6 and delivers 900 Mbps stateful firewall throughput. A quad-core ARMv8 processor runs Docker containerized applications at the edge, and passive GNSS feeds Automatic Vehicle Location systems.

This TAA-compliant part number bundles the hardware with 3-year NetCloud Ruggedized IoT Essentials and Advanced plans. Essentials includes NetCloud Manager for cloud management and software updates, 24x7 support, access to Enterprise Wireless University, and a limited lifetime warranty while the subscription is active. Advanced adds capabilities such as cellular coverage mapping and location analytics. When deployed as a captive modem, the R2105 is managed as an internal modem of the controlling router and does not need a separate licence. A SIM and AC power supply are not included.

Ideal for

  • Roof-mounted 5G connectivity for police, fire and EMS vehicles on FirstNet and other public safety networks
  • Mass transit buses and fleet vehicles that need onboard Wi-Fi 6 and GNSS feeds for Automatic Vehicle Location
  • Outdoor IoT cabinets such as traffic, utility and kiosk enclosures that need IP67 cellular connectivity
  • Adding 5G to an existing Cradlepoint vehicle router as a PoE-powered captive modem
  • Federal agency deployments that require TAA-compliant networking hardware

Specifications

Power

Features
Ignition Sensing: Automatic On & Time-Delay Off
Required
Power: 9–36 VDC (Molex Micro-Fit, Fused) or 802.3at PSE Type 2 (30 W)
PoE Class
802.3at Class 4 PD (30 W)
Consumption R2105
R2105 Consumption: Sleep 50 mW, Idle 8 W, Typical 14.5 W, Heavy 17 W

General

MPN
TAA-TCA3-2105-5GB-GA
UPC
840292703346
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
R2105 (R2100 Series)
Product Status
Active

Package

Plan
3-Year NetCloud Ruggedized IoT Essentials + Advanced
TAA Compliant
Yes (U.S. Federal Government ordering option)
Shipping Weight
5.03 lbs
Subscription Term
3 Years
Essentials Inclusions
Endpoint, 24x7 Support, Limited Lifetime Warranty, Enterprise Wireless University
Hardware Configuration
R2105 5G Router with Wi-Fi, Integrated Antennas; SIM and AC Power Supply Not Included

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 x Internal Cellular
GNSS GPS
Passive
LTE Bands
FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48
Modulation
Up to 256 QAM Downlink and Uplink (Carrier-Dependent)
Peak Rates
Up to 4.14 Gbps Down / 660 Mbps Up
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA and LTE Advanced Pro Cat 20; Dual 4FF SIM Slots; 3GPP Release 15
5G NR Bands
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Transmit Power
Tx Power: 5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; HPUE 25 dBm ± 1 (B41 Standalone)
Carrier Aggregation
LTE DL up to 7CA / UL up to 2CA; LTE + 5G NR ENDC DL 1CA / UL 1CA
Private Cellular Network
Yes, Including FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Size

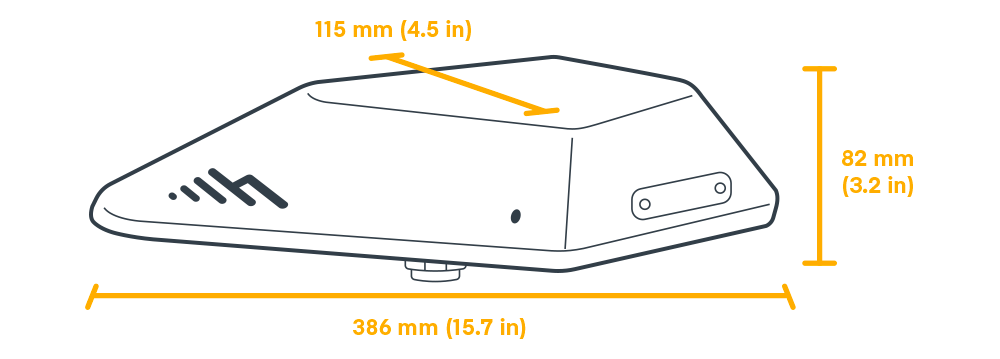

115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
Concurrent 2.4/5 GHz 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR (EU 5 GHz Client Mode Only)
Modem
Embedded 5G NR FR1 Low-/Mid-Band and 4G LTE Cat 20
Ethernet
1 x 2.5 GbE RJ45 (LAN Only) on 380 mm Non-Removable Shielded CAT5e Flat Cable
GNSS GPS
Passive (Multiplexed with Internal Cellular Antennas)

Performance

Vlans
Up to 64
Stateful Firewall
900 Mbps
Concurrent Sessions
32,000
Typical Client Count
100
Concurrent VPN Tunnels
10
Point TO Point Ipsec VPN
300 Mbps
Ips Application Aware Client Analytics
IPS/Application Aware Services/Client Analytics: 650 Mbps

Reliability

Vlans
Up to 64
Calculated MTBF
1,895,792 Hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G Procedure 1 (Shock, Vibration) and Procedure 5 (Shock)

Environmental

Humidity
5%–95% Operating and Storage
Temperature
Operating -30 °C to 70 °C; Storage -40 °C to 85 °C
Impact Protection
IK09 (10 J)
Ingress Protection Corrosion
IP67 (Dust Tight, Immersion to 1 m); IEC 60068-2-11 Salt-Mist Corrosion Resistance

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in Process (R2100 FIPS Models Only)
Shock Vibration
MIL-STD-810G Procedure 1 and Procedure 5
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Full Subscription Term
Warranty
Limited Lifetime with Active NetCloud Subscription
Service Plans
NetCloud Mobile Performance, NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager (Full Term)
Device Management
NetCloud Manager (Full Term)

Edge Computing

CPU
Quad-Core ARMv8 64-bit
Memory
Up to 1.8 GB (for NetCloud Container Orchestrator)
Applications
Docker Containerized Applications
Flash Storage
Up to 8 GB (for NetCloud Container Orchestrator)

Product Summary

PoE
802.3at
Wi-Fi
Dual-Band 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External Mounting for Best Reception with No Signal Loss
Subscription Terms
1, 3 & 5 Years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (Worldwide)

Wi-Fi Power R2105

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Questions buyers ask

Does the R2105 come with a SIM card or power supply?

No. The hardware configuration does not include a SIM or an AC power supply. The router uses 4FF SIMs in dual slots and is powered from 9–36 VDC through its Molex micro-fit cable or from 802.3at PoE.

Can I add the R2105 to a vehicle router I already have?

Yes. With supported Cradlepoint controlling routers, the R2105 can operate as a captive 5G modem. NetCloud manages the two units as a single entity and treats the R2105 as an internal modem, so it does not need a separate licence. It can also add Wi-Fi coverage for select controlling routers.

What does the 3-year NetCloud Essentials + Advanced bundle include?

Essentials includes NetCloud Manager for device management and software updates, 24x7 support, access to Enterprise Wireless University, and a limited lifetime warranty while the subscription is active. Advanced adds features such as location analytics and cellular coverage mapping from GNSS and 5G/LTE health data.

Is this router suitable for outdoor and vehicle mounting?

Yes. It is designed for vehicle roofs and IoT cabinet enclosures. It is rated IP67 and IK09, is tested for salt-mist corrosion resistance, meets MIL-STD-810G shock and vibration requirements, and carries E-Mark and SAE J1455 Category 2 vehicle certifications. It operates from -30 °C to 70 °C.

Is this part number TAA compliant?

Yes. TAA-TCA3-2105-5GB-GA is the TAA-compliant ordering option for U.S. Federal Government purchases.
