Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Ruggedized Router with Wi-Fi 6 and 3-Year NetCloud Ruggedized IoT Essentials Plan

5GMPN TC03-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$2,352.62$2,571.00Save $218.38

In stockShips from the US

Included subscription · 3 years
1 year−$156.493 years5 years+$448.37
Compliance · Standard
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

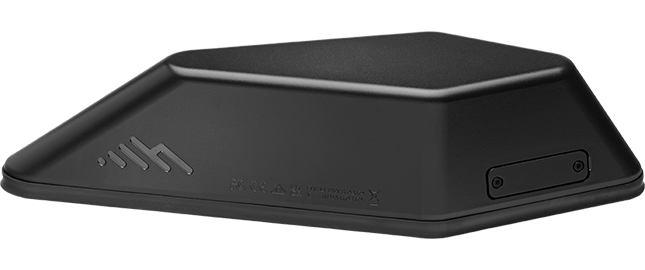

The Ericsson Cradlepoint R2105 is an exterior-mounted 5G router that integrates the modem, antennas and Wi-Fi 6 router in one IP67, IK09-rated housing for vehicle roofs and IoT enclosures. This all-regions package, TC03-2105-5GB-GA, includes a 3-year NetCloud Ruggedized IoT Essentials plan. It combines 5G NR sub-6 GHz (NSA and SA) with LTE Cat 20, peak rates up to 4.14 Gbps down, a 2.5 GbE port and power from 9–36 VDC or 802.3at PoE. SIM and AC power supply are not included.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Cat 20 modem with 4x4 MIMO, up to 4.14 Gbps downlink and 660 Mbps uplink
  • Modem, 4 internal cellular antennas and Wi-Fi 6 router integrated in one exterior-mount housing
  • Dual-radio, dual-band 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
  • 1 x 2.5 GbE RJ45 LAN port; powered by 9–36 VDC with ignition sensing or 802.3at PoE
  • IP67, IK09, salt-mist corrosion resistance, MIL-STD-810G, E-Mark; -30 °C to 70 °C operation
  • Operates as a standalone router or as a captive 5G modem for supported Cradlepoint routers
  • 3-year NetCloud Ruggedized IoT Essentials plan with NetCloud Manager, 24x7 support and limited lifetime warranty
  • Simplify vehicle installs: roof-mount the unit and run one Ethernet cable instead of multiple coax antenna leads

The Cradlepoint R2105, part of the Ericsson Cradlepoint R2100 series, is a 5G ruggedized router designed to be mounted on the roof of a vehicle or attached to an IoT cabinet. It combines the modem, four internal cellular antennas and a Wi-Fi 6 router in a single aerodynamic polycarbonate housing, so installation requires no coax runs. This all-regions SKU bundles the hardware with a 3-year NetCloud Ruggedized IoT Essentials plan; a 4FF SIM and AC power supply are not included.

The embedded modem supports 5G NR FR1 in both NSA and SA modes, including n41, n71, n77 and n48, alongside LTE Advanced Pro Category 20 with up to 7 downlink carriers. With 4x4 MIMO, peak rates reach up to 4.14 Gbps down and 660 Mbps up. Dual SIM slots, AT&T, T-Mobile and Verizon certification, and FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications support demanding fleet deployments, and CBRS Band 48 support enables private LTE and 5G networks.

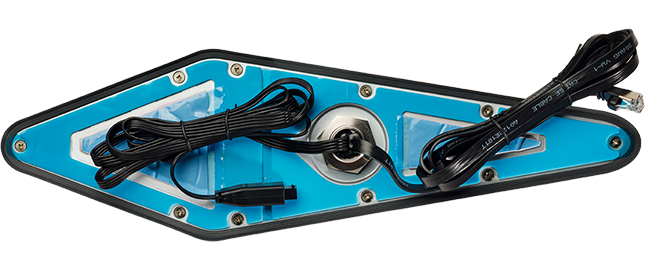

A single 2.5 GbE LAN port on a non-removable shielded flat cable carries data and can also power the unit via 802.3at PoE; alternatively it runs on 9–36 VDC with ignition sensing. The R2105 can serve as a self-contained router with dual-band 2x2 MU-MIMO Wi-Fi 6, or as a captive 5G modem for supported Cradlepoint routers, managed in NetCloud Manager as a single entity without a separate license. Ruggedness includes IP67, IK09 impact protection, salt-mist corrosion resistance, MIL-STD-810G shock and vibration, and E-Mark and SAE J1455 vehicle certification.

The Essentials plan provides NetCloud Manager management and software updates for the full term, 24x7 support and a limited lifetime warranty while the subscription is active. A quad-core 64-bit ARM CPU runs Docker containerized applications. A Cradlepoint R2100 datasheet is available.

Ideal for

  • Roof-mounted 5G connectivity for police, fire and EMS vehicles on public safety networks
  • Mass transit buses with onboard Wi-Fi 6 and GNSS-based Automatic Vehicle Location
  • Adding 5G to an existing Cradlepoint in-vehicle router as a captive modem
  • Outdoor IoT cabinets and enclosures exposed to weather, impact and salt mist
  • Private LTE/5G deployments on CBRS Band 48

Specifications

Power

Fusing
3 A fuse for 9–24 VDC; 2.5 A fuse for > 24 VDC
DC Cable
380 mm (14.96 in) non-removable, 4-pin 2x2 Molex micro-fit connector
Features
Ignition sensing (automatic ON and time-delay OFF)
PoE Class
802.3at Class 4 PD (30 W)
Consumption
Sleep 50 mW; Idle 8 W; Typical 14.5 W; Heavy 17 W
Input Options
Power Required: 9–36 VDC steady state, or 802.3at PSE Type 2 (30 W)

General

MPN
Manufacturer Part Number: TC03-2105-5GB-GA
UPC
840292703186
Brand
Cradlepoint (Ericsson)
Model
R2105 (R2100 series)
Region
All Regions
Service Plan
3-Year NetCloud Ruggedized IoT Essentials Plan
Product Status
Active
Subscription Term
3 years
Hardware Configuration
R2105 5G router with Wi-Fi (IoT), integrated antennas; 4FF SIM not included; no AC power supply

Package

Contents
Package: R2105 router with integrated antennas plus 3-year NetCloud Ruggedized IoT Essentials plan (SIM and AC power supply not included)
Shipping Weight
5.03 lb

Physical

Weight
1.46 kg (3 lb 4 oz)
Dimensions

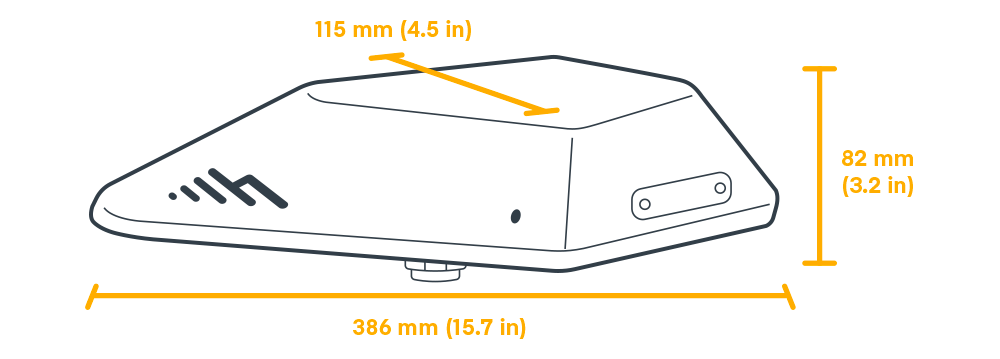

Size: 115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)

Interfaces

GNSS
Passive GNSS (multiplexed with internal cellular antennas)
Wi-Fi
Dual-radio, dual-band, concurrent (2.4/5 GHz); 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR; 5 GHz in the EU limited to client mode
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Category 20
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded CAT5e flat cable with male RJ45

Wi-Fi Power

Fcc
2.4 GHz 30.9 dBm; 5250–5350 MHz 29.4 dBm; 5470–5725 MHz 29.5 dBm; 5725–5850 MHz 34.3 dBm (EIRP)
Canada
2.4 GHz 30.9 dBm; 5470–5725 MHz 29.5 dBm; 5725–5850 MHz 34.3 dBm (EIRP)
European Union
2.4 GHz 20.0 dBm; 5470–5725 MHz 22.7 dBm (EIRP)
Global Safe Mode
2.4 GHz 20.0 dBm (EIRP)

Performance

Vlans
Up to 64
Stateful Firewall
900 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Tcp Sessions
Concurrent Sessions (TCP): 32,000
Point TO Point Ipsec VPN
300 Mbps
Ips Application Aware Client Analytics
IPS/Application Aware Services/Client Analytics: 650 Mbps

Reliability

Vlans
Up to 64
Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration Humidity
MIL-STD-810G 2.2.2 Procedure 1 (Shock, Vibration); Procedure 5 (Shock)

Environmental

Storage Humidity
5% to 95%
Impact Protection
IK09 (protected against 10 joules impact)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Ingress Protection Corrosion
IP67 (dust tight, immersion up to 1 m); IEC60068-2-11 salt mist corrosion resistance

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Passive GNSS
MIMO
4x4
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 x internal cellular antennas
LTE Bands
FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
5G FR1 up to 256 QAM DL and UL (only enabled on particular carrier equipment)
Peak Rates
Downlink up to 4.14 Gbps; Uplink up to 660 Mbps
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
5G FR1 NSA/SA and LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Transmit Power
5G NR 23 dBm ± 1.5; LTE + 5G NR EN-DC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 standalone only)
Carrier Aggregation
LTE DL up to 7 CA, UL up to 2 CA; LTE + 5G NR EN-DC DL 1 CA, UL 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (worldwide)
Public Safety Certifications
Public Safety Network Certifications: FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, T-Mobile, Verizon †

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 module in process (R2100 FIPS models only)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity
MIL-STD-810G 2.2.2 Procedure 1 (Shock, Vibration); Procedure 5 (Shock)

Cloud Services

Support
Included for the full subscription term
Warranty
Limited lifetime warranty for as long as the device has an active Ericsson NetCloud Service plan
Service Plans
NetCloud Service for Mobile Performance, NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (see NetCloud Container Orchestrator memory resources)
Applications
Docker containerized applications
Flash Storage
Up to 8 GB (see NetCloud Container Orchestrator memory resources)

Product Summary

PoE
802.3at
Wi-Fi
Dual-radio, dual-band, concurrent; 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity, 5G & Cat 20 LTE
Private Cellular Network
Yes (CBRS, 4G LTE, 5G)
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

Is a power supply or SIM included?

No. This configuration ships with integrated antennas but without an AC power supply or SIM. It is powered from 9–36 VDC through its DC cable or by an 802.3at PoE source, and accepts 4FF SIMs in its dual SIM slots.

Can the R2105 add 5G to a router I already have?

Yes. It can be deployed as a captive modem with supported Cradlepoint controlling routers; NetCloud Manager treats it as an internal modem, so no separate license is needed.

How many Ethernet ports does it have?

One 2.5 GbE RJ45 port (LAN only) on a 380 mm non-removable shielded flat cable. The same port can power the router via 802.3at PoE.

Which market is this part number for?

TC03-2105-5GB-GA is an all-regions SKU. It carries FCC, IC, CE and RCM regulatory approvals; note that 5 GHz Wi-Fi use in the European Union is limited to client mode.

What does the 3-year Essentials plan include?

NetCloud Manager device management and software updates for the full term, 24x7 support, access to Enterprise Wireless University, and a limited lifetime warranty while the subscription is active. NetCloud Advanced can be added at any time.
