Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Exterior-Mount Ruggedized Router with Wi-Fi 6 and 3-Year TAA NetCloud Mobile Essentials

5GMPN TAA-MB03-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$2,644.50$2,889.99Save $245.49

In stockShips from the US

Included subscription · 3 years
1 year+$47.373 years5 years+$448.37
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

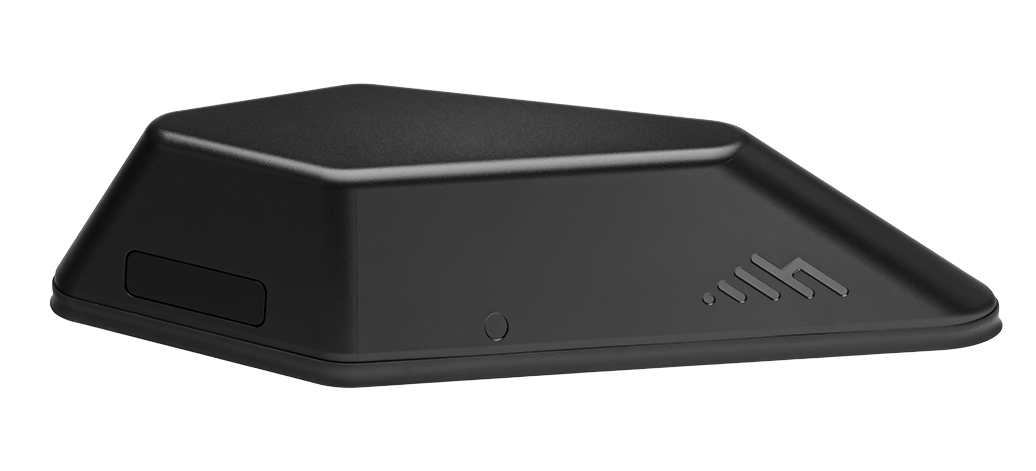

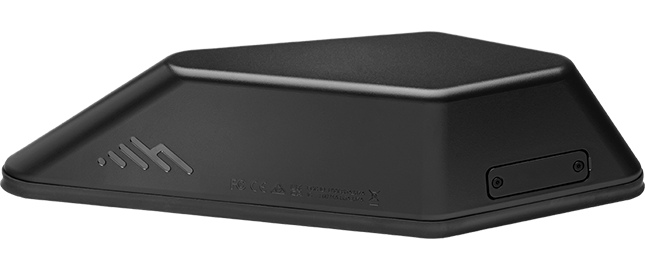

The Cradlepoint R2105 combines a 5G NR and Cat 20 LTE modem, internal antennas, Wi-Fi 6 and a router in one ruggedized housing. It is built to mount on a vehicle roof or an IoT cabinet. This TAA-compliant U.S. Federal Government SKU (TAA-MB03-2105-5GB-GA) includes a 3-year NetCloud Mobile Performance Essentials plan. The unit can run as a standalone 5G router or add 5G to an existing Cradlepoint router as a captive modem. It is powered by PoE or 9–36 VDC and needs no coax runs.

  • Integrated 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with four internal cellular antennas and 4x4 MIMO
  • Dual-radio, dual-band 2x2 MU-MIMO Wi-Fi 6 with DFS
  • 1 x 2.5 GbE RJ45 LAN on a non-removable 380 mm shielded flat cable
  • Powered by 802.3at PoE or 9–36 VDC with ignition sensing
  • IP67, IK09 and IEC 60068-2-11 salt mist rated polycarbonate housing for roof or cabinet mounting
  • Runs as a standalone router or as a captive 5G modem for supported Cradlepoint routers
  • TAA-compliant SKU with a 3-year NetCloud Mobile Performance Essentials plan
  • Removes coax runs and their signal loss by placing the modem and antennas outside the vehicle or enclosure

The Ericsson Cradlepoint R2105 is the Wi-Fi 6 model of the R2100 5G ruggedized router series. It is designed for mass transit, public safety and IoT deployments, where mounting the modem and antennas outside the vehicle or enclosure gives the best reception with no cable signal loss. The modem, four internal cellular antennas and router sit in a single aerodynamic polycarbonate housing. The housing is rated IP67, IK09 impact protected, and tested for salt mist corrosion. Part number TAA-MB03-2105-5GB-GA is the TAA-compliant option for the United States Federal Government. It bundles the hardware with a 3-year NetCloud Mobile Performance Essentials plan covering NetCloud Manager, software updates and 24x7 support. A SIM card and AC power supply are not included.

The embedded modem supports 5G NR FR1 in NSA and SA modes and LTE Advanced Pro Cat 20, with peak rates up to 4.14 Gbps down and 660 Mbps up. It has 4x4 MIMO and dual 4FF SIM slots. The modem is certified for AT&T, T-Mobile and Verizon, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. CBRS Band 48 private networks are also supported.

Installation uses one short cable run. The single 2.5 GbE LAN port connects through a non-removable 380 mm shielded flat cable. The unit can be powered by 802.3at PoE or by 9–36 VDC with ignition sensing. Dual-concurrent 2x2 MU-MIMO Wi-Fi 6 serves clients directly. Paired with a supported Cradlepoint controlling router, the R2105 can act as a captive 5G modem managed as a single entity, with no separate license. On select routers it can also serve as an extra Wi-Fi source for uses such as video offload. Passive GNSS supports AVL integration.

NetCloud Advanced adds coverage maps and location history. A quad-core ARMv8 CPU runs Docker containers at the edge. The R2100 data sheet is available.

Ideal for

  • Roof-mounted 5G and Wi-Fi 6 for transit buses and public safety vehicles
  • Adding 5G to an existing Cradlepoint vehicle router as a captive modem
  • Exterior-mounted connectivity for IoT cabinets and outdoor enclosures
  • Extra Wi-Fi capacity for video offload in captive mode on select routers
  • TAA-compliant federal fleet and field deployments

Specifications

Modem

SMS
Yes
MIMO
4x4 MIMO
Three G
WCDMA/UMTS/HSPA+
Antennas
4 x internal cellular antennas
GNSS GPS
Passive GNSS
NR Bands
5G NR (NSA/SA): n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
TX Power
5G NR 23 dBm ±1.5; EN-DC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41) (typical conducted)
LTE Bands
FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48
Modulation
Up to 256 QAM downlink and uplink (carrier dependent)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20; dual 4FF SIM; 3GPP Release 15
Three G Bands
1, 2, 4, 5, 6, 8, 9, 19
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; EN-DC: 1 CA DL / 1 CA UL
Gcf Global Operators
GCF members list
Private Cellular Network
Yes, CBRS Band 48 (FCC Part 96)
Network Operator Standards
PTCRB (U.S., Canada), GCF (worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Ptcrb North America Operators
PTCRB operators
Network Operator Certifications
AT&T, T-Mobile, Verizon

Power

Fuse
3 A fuse for 9–24 VDC; 2.5 A fuse above 24 VDC
DC Input
9–36 VDC via 380 mm non-removable cable with 4-pin 2x2 Molex micro-fit connector
Features
Ignition sensing (automatic ON, time-delay OFF)
PoE Class
802.3at Class 4 PD (30 W)
PoE Input
Alternatively 802.3at PSE Type 2 (30 W)
Consumption
R2105: sleep 50 mW, idle 8 W, typical 14.5 W, heavy 17 W

General

MPN
TAA-MB03-2105-5GB-GA
UPC
840292703308
Plan
3-Year NetCloud Mobile Performance Essentials Plan
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2105 (R2100 series, with Wi-Fi)
Region
United States Federal Government
FIPS Model
Non-FIPS model
TAA Compliant
TAA compliant
Product Status
Active
Shipping Weight
5.03 lb
Subscription Term
3 years
Hardware Configuration
5G router with Wi-Fi; integrated antennas; SIM and AC power supply not included

Physical

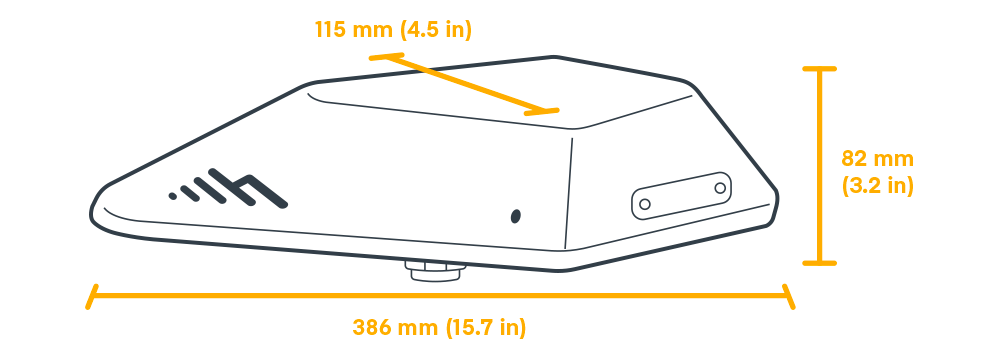

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
2.4/5 GHz concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS (EU 5 GHz limited to client mode)
Modem
Embedded 5G NR FR1 low/mid-band + LTE Cat 20 modem
Ethernet

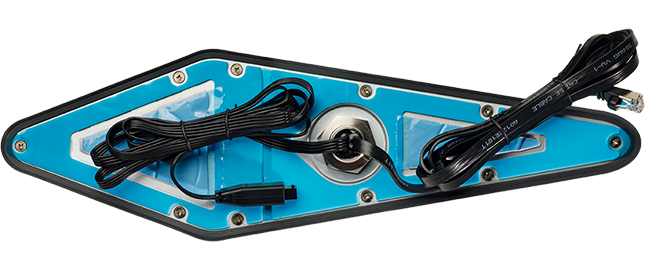

1 x 2.5 GbE (LAN only) on 380 mm non-removable shielded flat cable with male RJ45
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Wi-Fi Power

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Performance

Stateful Firewall
900 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
300 Mbps
Ips Application Aware Client Analytics
650 Mbps

Reliability

Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G 2.2.2 Procedure 1 (shock, vibration) and Procedure 5 (shock)
Layer2 Layer3 Vlans
Up to 64

Environmental

Humidity
5% to 95% operating and storage
Impact Protection
IK09 (protected against 10 joules impact)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Ingress Protection Corrosion
IP67 (dust tight, immersion up to 1 m); IEC 60068-2-11 salt mist

Certifications

Safety
CB Scheme, IEC/EN 62368-1
Vehicle
E-Mark, SAE J1455 Category 2
Security
FIPS 140-3 Level 1 module in process (FIPS models only; this SKU is non-FIPS)
Shock Vibration
MIL-STD-810G 2.2.2 Procedures 1 and 5
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for the full term plus Enterprise Wireless University access
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance or Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive GNSS
Status 5G
5G Embedded
Throughput
900 Mbps (firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years available
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity: 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

Does the R2105 need external antennas?

No. Four cellular antennas are built into the housing, and passive GNSS shares those internal antennas. The unit is designed to mount on a vehicle roof or IoT cabinet for the best reception with no coax signal loss.

How is the R2105 powered?

It is powered either by 802.3at PoE (Type 2, 30 W) or by 9–36 VDC through a 380 mm non-removable cable with a 4-pin Molex micro-fit connector. DC installations use a 3 A fuse up to 24 VDC or a 2.5 A fuse above that. An AC power supply is not included.

Can it work with my existing Cradlepoint router?

Yes. With supported Cradlepoint controlling routers, the R2105 can run as a captive 5G modem. NetCloud Manager then manages both units as a single entity and treats the R2105 as an internal modem, so no separate license is needed.

Is a SIM card included?

No. The R2105 has dual 4FF SIM slots, and a SIM card is not included with this SKU.

What does the 3-year Essentials plan cover?

It covers NetCloud Manager management, software and firmware updates, and 24x7 support for the full term, plus access to Enterprise Wireless University. The hardware carries a limited lifetime warranty while an active plan is in place. NetCloud Advanced can be added later for features such as coverage maps.
