Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Ruggedized Roof-Mount Router with Wi-Fi 6 and 3-Year NetCloud Essentials + Advanced Plans (TAA)

5GMPN TAA-MBA3-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$3,193.53$3,489.99Save $296.46

In stockShips from the US

Included subscription · 3 years
1 year+$47.373 years5 years+$448.37
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

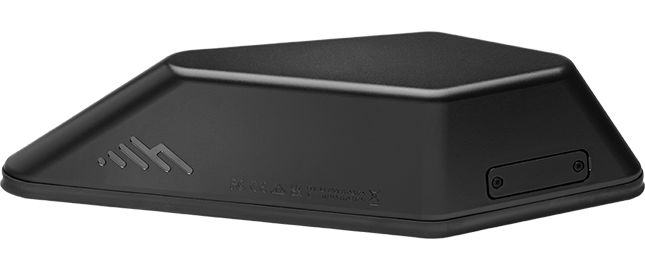

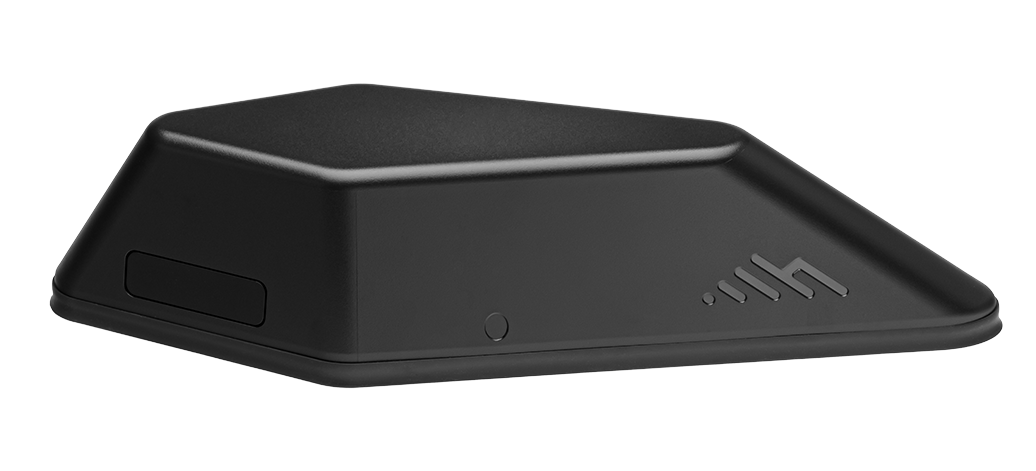

The Cradlepoint R2105 is the Wi-Fi 6 model of the R2100 ruggedized 5G router, designed to mount on a vehicle roof or IoT enclosure. It combines modem, antennas and router in one IP67, IK09 housing. This TAA-compliant U.S. Federal Government SKU (TAA-MBA3-2105-5GB-GA) includes 3-year NetCloud Mobile Performance Essentials and Advanced plans. It has a 5G NR / Cat 20 LTE modem, dual 4FF SIM slots, passive GNSS and one 2.5 GbE port, and accepts DC or 802.3at PoE power. A SIM card and AC power supply are not included.

  • Integrated 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4 internal cellular antennas and 4x4 MIMO
  • Dual-band 2x2 MU-MIMO Wi-Fi 6 with DFS

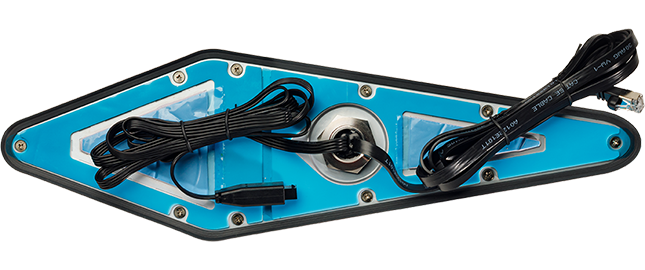

  • 1 x 2.5 GbE RJ45 (LAN) on a 380 mm non-removable flat cable
  • Powered by 9–36 VDC with ignition sensing or 802.3at PoE
  • IP67, IK09, salt-mist corrosion resistance and MIL-STD-810G shock/vibration
  • Runs as a standalone router or as a captive 5G modem for supported Cradlepoint routers
  • 3-year NetCloud Mobile Performance Essentials + Advanced plans, TAA-compliant SKU
  • Simplify installs: modem, antennas and router in one roof-mounted unit with no coax cables

The Cradlepoint R2105 puts a 5G modem, four internal cellular antennas and a Wi-Fi 6 router into one aerodynamic, exterior-mounted housing. Mass transit, public safety and IoT teams can install it on a vehicle roof or cabinet enclosure with no coax runs and no antenna cable loss. Part number TAA-MBA3-2105-5GB-GA is the TAA-compliant U.S. Federal Government ordering option. It includes 3-year NetCloud Mobile Performance Essentials and Advanced plans.

The embedded modem supports 5G NR FR1 in NSA and SA modes, with LTE Advanced Pro Category 20, 4x4 MIMO and peak rates up to 4.14 Gbps down and 660 Mbps up. It has dual 4FF SIM slots and CBRS Band 48 support for private networks. Carrier certifications cover AT&T, T-Mobile and Verizon, and public safety certifications include FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. Dual-band 2x2 MU-MIMO Wi-Fi 6 serves nearby clients. A 380 mm flat 2.5 GbE cable connects to in-vehicle equipment.

The R2105 can run as a self-contained router, or as a captive 5G modem behind a supported Cradlepoint router. In captive mode, NetCloud Manager treats it as an internal modem, with no separate licence. With select controlling routers, it can also add Wi-Fi coverage for tasks such as video offload. Power comes from 9–36 VDC with ignition sensing, or from 802.3at PoE.

The housing is rated IP67 and IK09, resists salt-mist corrosion and meets MIL-STD-810G shock and vibration requirements. The 3-year plans include NetCloud Manager, software updates, 24x7 support and a limited lifetime warranty while the subscription is active. They also provide the Advanced coverage-map and location analytics. The Cradlepoint R2100 datasheet is available.

Ideal for

  • Roof-mounted 5G and Wi-Fi 6 for transit buses and public safety vehicles
  • Adding 5G to an existing Cradlepoint vehicle router as a captive modem
  • Exterior-mounted connectivity for IoT cabinets and roadside enclosures
  • Video offload Wi-Fi coverage alongside select controlling routers
  • Federal fleet deployments requiring TAA-compliant equipment

Specifications

Power

DC Cable
380 mm DC cable, 4-pin 2x2 Molex micro-fit
DC Input
9–36 VDC steady state
PoE Class
802.3at Class 4 PD (30 W)
PoE Input
Alternative: 802.3at PSE Type 2 (30 W)
Fuse 9 TO 24 Vdc
3 A fuse for 9–24 VDC
Ignition Sensing
Ignition sensing (automatic ON, time-delay OFF)
Consumption R2105
R2105 (this model): sleep 50 mW, idle 8 W, typical 14.5 W, heavy 17 W
Consumption R2155
R2155 (no Wi-Fi): sleep 50 mW, idle 6 W, typical 10 W, heavy 11.5 W
Fuse Above 24 Vdc
2.5 A fuse for >24 VDC

General

MPN
TAA-MBA3-2105-5GB-GA
UPC
840292702561
Brand
Cradlepoint (Ericsson)
Model
Cradlepoint R2105 (R2100 series, with Wi-Fi)
Manufacturer
Ericsson Enterprise Wireless
Product Status
Active
Shipping Weight
5.03 lb

Package

Plan
NetCloud Mobile Performance Essentials + Advanced
Region
United States Federal Government
TAA Compliant
TAA compliant
Subscription Term
3 years
Essentials Inclusions
24x7 support, limited lifetime warranty, Enterprise Wireless University
Hardware Configuration
R2105 with Wi-Fi, integrated antennas; SIM and AC power supply not included

Cellular

SMS
Yes
GNSS
Passive GNSS
MIMO
4x4 MIMO
Three G
WCDMA/UMTS/HSPA+
Antennas
4 x internal cellular antennas
TX Power
5G NR 23 dBm ±1.5; EN-DC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41 SA only), typical conducted
Modulation
Up to 256 QAM DL/UL (carrier-equipment dependent)
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20, dual 4FF SIM, 3GPP Rel. 15
Peak Uplink
Up to 660 Mbps
LTE Fdd Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE Tdd Bands
B34, B38, B39, B40, B41, B42, B43, B46, B48
Peak Downlink
Up to 4.14 Gbps
Three G Bands
1, 2, 4, 5, 6, 8, 9, 19
Five G NR Bands
NSA & SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Carrier Aggregation
LTE: 7CA DL / 2CA UL; EN-DC: 1CA DL / 1CA UL
Gcf Global Operators
GCF members list
Private Cellular Network
Yes, FCC Part 96 CBRS Band 48
Network Operator Standards
PTCRB (U.S., Canada), GCF (worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Ptcrb North America Operators
PTCRB operators
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
1.46 kg (3 lb 4 oz)

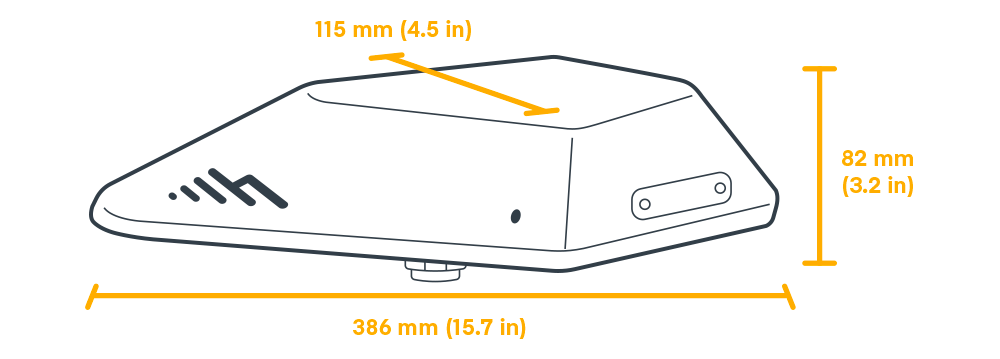

Dimensions
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)

Interfaces

GNSS
Passive GNSS via internal cellular antennas
Wi-Fi
2x2 MU-MIMO Wi-Fi 6 with DFS, 2.4/5 GHz concurrent (EU 5 GHz client mode only)
Modem
Embedded 5G NR FR1 / LTE Cat 20 modem
Ethernet
1 x 2.5 GbE (LAN only), 380 mm flat CAT5e cable with RJ45

Wi-Fi Power

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
900 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
300 Mbps
Ips App Aware Client Analytics
650 Mbps

Reliability

L2 L3 Vlans
Up to 64
Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G 2.2.2 Procedures 1 and 5

Environmental

Storage Humidity
5% to 95%
Impact Protection
IK09 (10 joules impact)
Ingress Protection
IP67 (dust tight, immersion up to 1 m)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Corrosion Resistance
IEC 60068-2-11 salt mist
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
CB Scheme, IEC/EN 62368-1
Vehicle
E-Mark, SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process on R2100 FIPS models only (this SKU is not a FIPS model)
Shock Vibration
MIL-STD-810G 2.2.2 Procedures 1 and 5
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager (full term)
Device Management
NetCloud Manager (full term)

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 8 GB (for NetCloud Container Orchestrator)

Product Summary

PoE
802.3at
Wi-Fi
Dual-band 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive
Throughput
900 Mbps (firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Five G Status
5G Embedded
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual connectivity: 5G & Cat 20 LTE
Private Cellular Network
Yes: CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

Does this include a SIM card or power supply?

No. The router has dual 4FF SIM slots, but no SIM card is included, and no AC power supply is included. It runs on 9–36 VDC through its 380 mm cable, or on 802.3at PoE.

Can I add the R2105 to an existing Cradlepoint router?

Yes. The R2105 can run as a captive 5G modem with supported Cradlepoint controlling routers. NetCloud Manager treats it as an internal modem, so it needs no separate licence.

Is the R2105 suitable for outdoor mounting?

Yes. It is designed to mount on vehicle roofs or IoT enclosures. It is rated IP67 and IK09, resists salt-mist corrosion and operates from -30 °C to 70 °C.

What does the Advanced plan provide?

The Advanced plan uses GNSS and 5G/4G signal health to show current and historical vehicle locations. It also generates detailed cellular coverage maps.
