Cradlepoint R2105 5G Ruggedized Router with Wi-Fi 6 and 1-Year NetCloud Mobile Performance Essentials Plan (TAA)

5GMPN TAA-MB01-2105-5GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$2,399.99

In stockShips from the US

Included subscription · 1 year
1 year3 years−$47.375 years+$401
Compliance · TAA compliant
Standard−$203.86TAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 22 configurations

Datasheets & documents

Overview

The Cradlepoint R2105 is an exterior-mounted 5G ruggedized router for vehicles and IoT enclosures. It combines a 5G NR / Cat 20 LTE modem, four internal cellular antennas and dual-band Wi-Fi 6 in one IP67, IK09 housing. This TAA-compliant SKU for U.S. Federal Government ordering includes a 1-year Ericsson NetCloud Mobile Performance Essentials plan with cloud management, 24x7 support and software updates. The R2105 runs from 9–36 VDC vehicle power or 802.3at PoE, so the install needs no coax cables.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO, up to 4.14 Gbps downlink and 660 Mbps uplink
  • Integrated modem, four internal cellular antennas and router in one exterior-mount IP67, IK09 polycarbonate housing
  • Dual-radio, dual-band 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
  • Powered from 9–36 VDC with ignition sensing, or by 802.3at PoE; one 2.5 GbE RJ45 LAN port
  • Works as a standalone 5G router or as a captive 5G modem for supported Cradlepoint routers
  • FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified; CBRS Band 48 private network support
  • TAA-compliant SKU with a 1-year NetCloud Mobile Performance Essentials plan
  • Simpler vehicle installs: the antennas are built in, so there are no coax cables to route through the roof

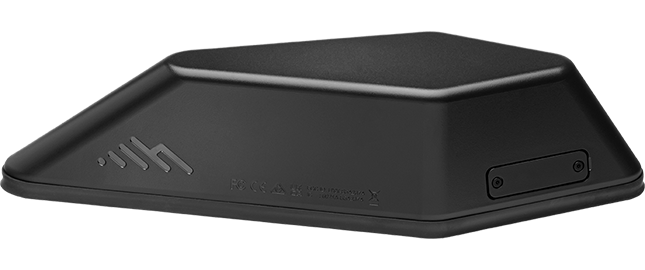

The Ericsson Cradlepoint R2105 is the Wi-Fi 6 model of the R2100 Series 5G ruggedized router. It is designed to mount on a vehicle roof or attach to an IoT cabinet enclosure, and it suits mass transit, public safety and other fleet operators. The modem, antennas and router share one aerodynamic polycarbonate housing rated IP67 and IK09. This removes antenna coax runs and keeps signal loss to a minimum. This part number (TAA-MB01-2105-5GB-GA) is the TAA-compliant U.S. Federal Government ordering option and bundles the router with a 1-year NetCloud Mobile Performance Essentials plan.

The embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Category 20 modem supports 4x4 MIMO, dual 4FF SIM slots and peak rates of up to 4.14 Gbps downlink and 660 Mbps uplink. The modem also supports CBRS Band 48 for private cellular networks. It carries AT&T, T-Mobile and Verizon network operator certifications, and it is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified for public safety use. Dual-radio, dual-band 2x2 MU-MIMO Wi-Fi 6 serves onboard clients, and a single 2.5 GbE LAN port connects to in-vehicle equipment.

You can deploy the R2105 as a self-contained router, or add 5G to an existing installation by running it as a captive modem with supported Cradlepoint controlling routers. In captive mode, NetCloud Manager treats the R2105 as an internal modem, so it needs no separate license. With select controlling routers it can also act as an extra Wi-Fi source for uses such as video offload. Passive GNSS feeds Automatic Vehicle Location systems. Ignition sensing handles automatic power-on and time-delayed shutdown.

The Essentials plan covers NetCloud Manager cloud management, software and firmware updates, 24x7 support and access to Enterprise Wireless University for the full term. A limited lifetime warranty applies while the router has an active NetCloud subscription. The package does not include a SIM or an AC power supply. The Cradlepoint R2100 datasheet has full details.

Ideal for

  • Roof-mounted 5G connectivity and onboard Wi-Fi for mass transit buses and shuttles
  • Public safety and first responder vehicles using FirstNet, Connecting Heroes or Frontline networks
  • Federal agency fleets that require TAA-compliant networking equipment
  • Adding 5G to an existing Cradlepoint in-vehicle router as a captive modem
  • IoT cabinets and outdoor enclosures on private CBRS or public cellular networks

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 internal cellular antennas
GNSS GPS
Passive GNSS
Modulation
Up to 256 QAM DL/UL (carrier-equipment dependent)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC; IC; CE; RCM
Technology
5G FR1 NSA/SA + LTE-A Pro Cat 20; dual 4FF SIM; 3GPP Rel. 15
5G NR Bands
n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
LTE Bands Fdd
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE Bands Tdd
B34, B38, B39, B40, B41, B42, B43, B46, B48
Transmit Power
5G NR 23 ± 1.5 / EN-DC 20 ± 1 / LTE 23 ± 1 / HPUE 25 ± 1 dBm (B41 SA) — typical conducted
Carrier Aggregation
LTE: 7CA DL / 2CA UL; EN-DC: 1CA DL / 1CA UL
Private Cellular Network
Yes, incl. FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (worldwide)
Public Safety Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T; T-Mobile; Verizon

Power

Fusing
3 A fuse for 9–24 VDC installs; 2.5 A fuse for > 24 VDC installs
Features
Ignition sensing (automatic ON & time-delay OFF)
Required

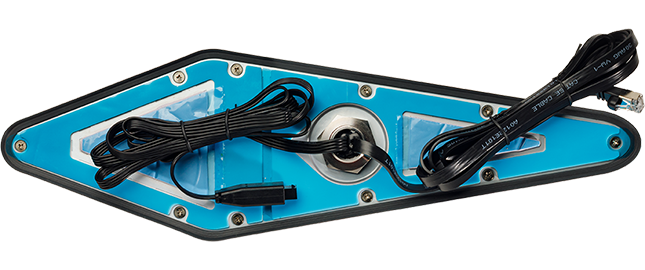

One of: 9–36 VDC via non-removable DC cable (4-pin 2x2 Molex Micro-Fit) or 802.3at PSE Type 2 (30 W)
PoE Class
802.3at Class 4 PD (30 W)
Consumption R2105
Sleep 50 mW / Idle 8 W / Typical 14.5 W / Heavy 17 W

General

MPN
TAA-MB01-2105-5GB-GA
UPC
840292705159
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2105 (R2100 Series)
Region
United States: Federal Government
Service Plan
1-Year NetCloud Mobile Performance Essentials Plan
TAA Compliant
TAA compliant
Shipping Weight
5.03 lb
Subscription Term
1 year
Hardware Configuration
R2105 5G router with Wi-Fi; SIM and AC power supply not included; integrated antennas

Physical

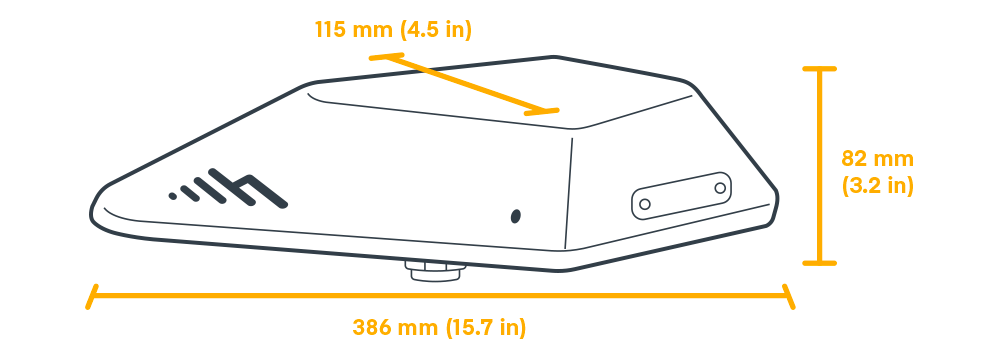

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
Concurrent 2.4/5 GHz 2x2 MU-MIMO Wi-Fi 6 with DFS; 5 GHz limited to client mode in the EU
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded CAT5e flat cable
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Stateful Firewall
900 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Sessions Tcp
32,000
Point TO Point Ipsec VPN
300 Mbps
Ips App Aware Client Analytics
650 Mbps

Reliability

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G Sec. 2.2.2 Proc. 1 (shock, vibration) and Proc. 5 (shock)

Environmental

Humidity
5% to 95% operating and storage
Impact Protection
IK09 (protected against 10 joules impact)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Ingress Protection Corrosion
IP67 (dust tight, water immersion up to 1 m); IEC60068-2-11 salt-mist corrosion resistance

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (R2100 FIPS models only; this SKU is non-FIPS)
Shock Vibration
MIL-STD-810G Sec. 2.2.2 Proc. 1 and 5
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
Dual-band 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)
Subscription Terms Available
1, 3 & 5 years

R2105 Wi-Fi Power

Fcc
2.4 GHz 30.9 / 5250–5350 MHz 29.4 / 5470–5725 MHz 29.5 / 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9 / 5470–5725 MHz 29.5 / 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0 / 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Questions buyers ask

Does the R2105 include a power supply or SIM card?

No. This configuration ships without an AC power supply or SIM. It runs from 9–36 VDC vehicle power through its non-removable DC cable or from an 802.3at PoE source, and it has dual 4FF SIM slots.

What does the 1-year NetCloud Mobile Performance Essentials plan include?

The plan includes NetCloud Manager cloud management, software and firmware updates, 24x7 support and access to Enterprise Wireless University for one year. The limited lifetime warranty applies while an active NetCloud subscription is in place.

Can I use the R2105 with an existing Cradlepoint router?

Yes. With supported Cradlepoint controlling routers it can run as a captive 5G modem, managed in NetCloud Manager as a single entity with no separate license. With select routers it can also add Wi-Fi coverage.

Is the R2105 approved for public safety networks?

Yes. The modem is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. It also holds AT&T, T-Mobile and Verizon network operator certifications.

Is this part number TAA compliant?

Yes. TAA-MB01-2105-5GB-GA is the TAA-compliant U.S. Federal Government ordering option for the R2105 with a 1-year Essentials plan.
